Oase AquaMax Eco Pond Pump
Streams and small waterfalls
Replacing an old, power-hungry pond pump
Swimming ponds and natural pools (12 V)
Oase · Pond Pumps
The owner's insights on the Oase AquaMax Eco Pond Pump
This is the pump most garden and fish ponds need. It pushes water to the filter and back over a stream or waterfall, all day and all night. That is why the running cost matters more than the purchase price.

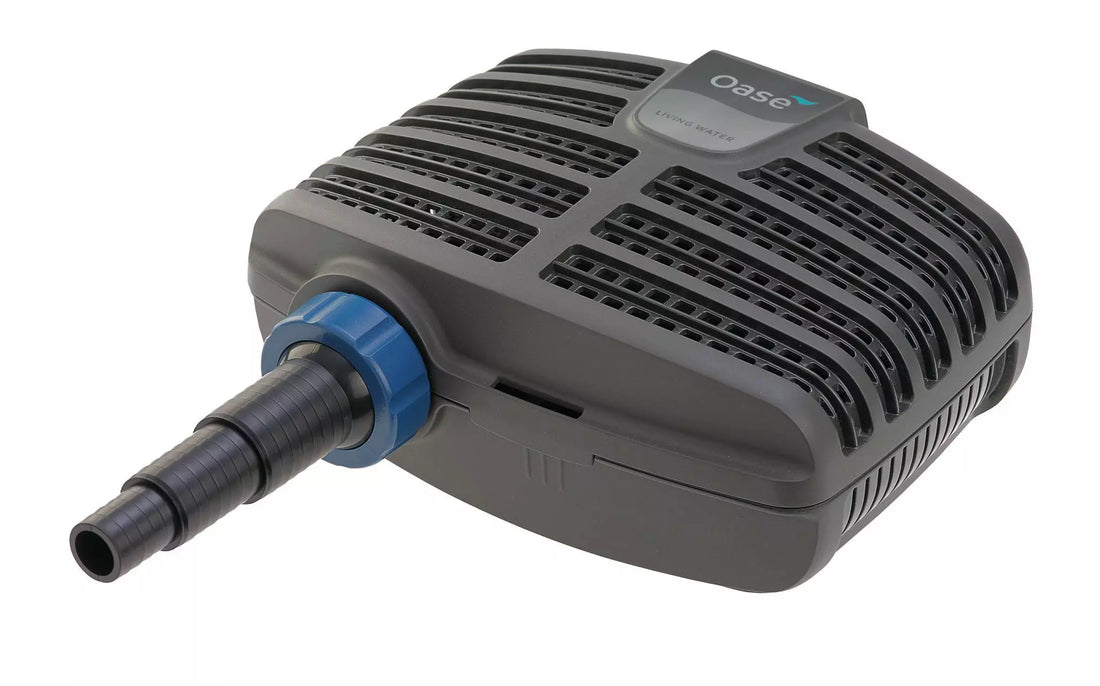

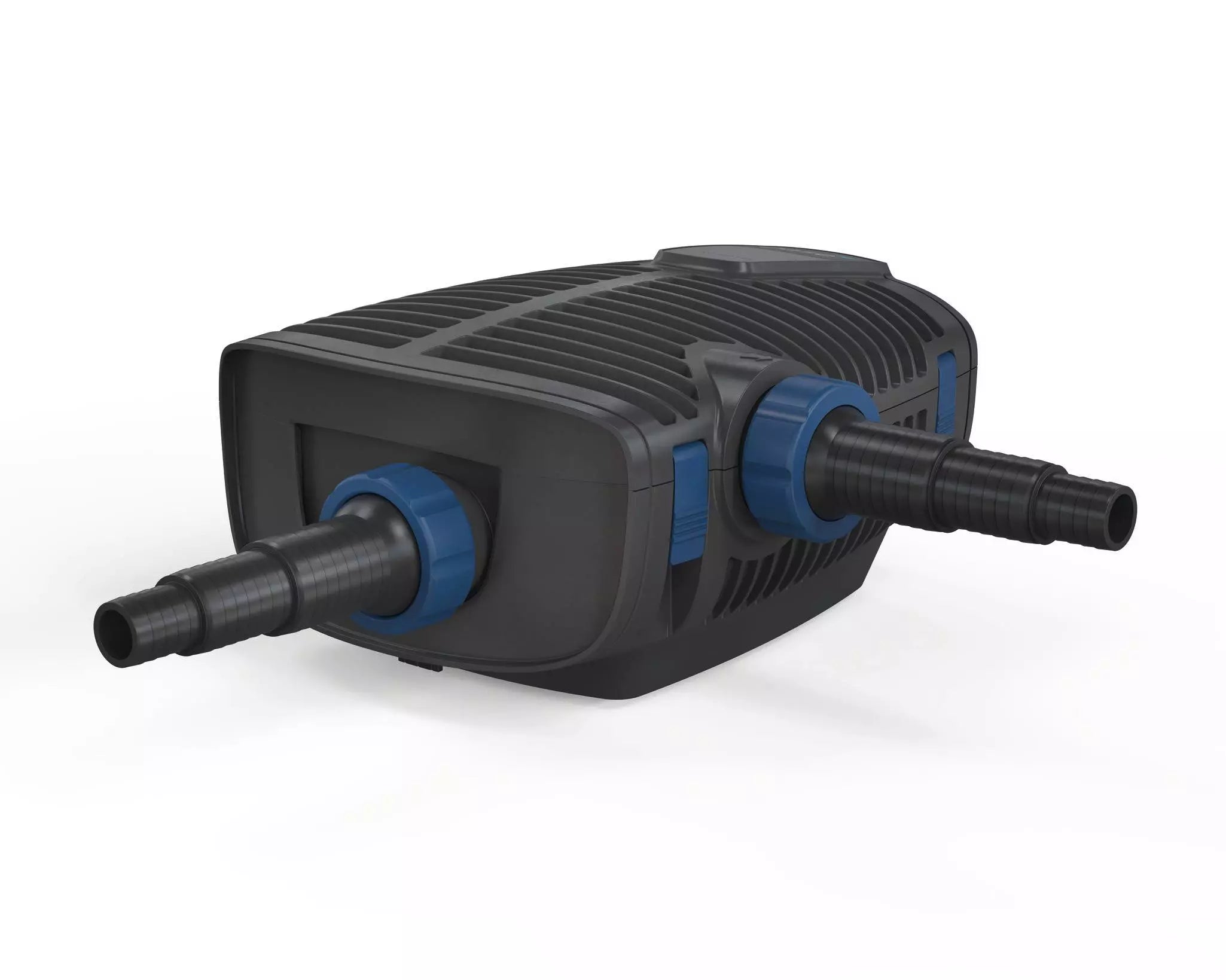

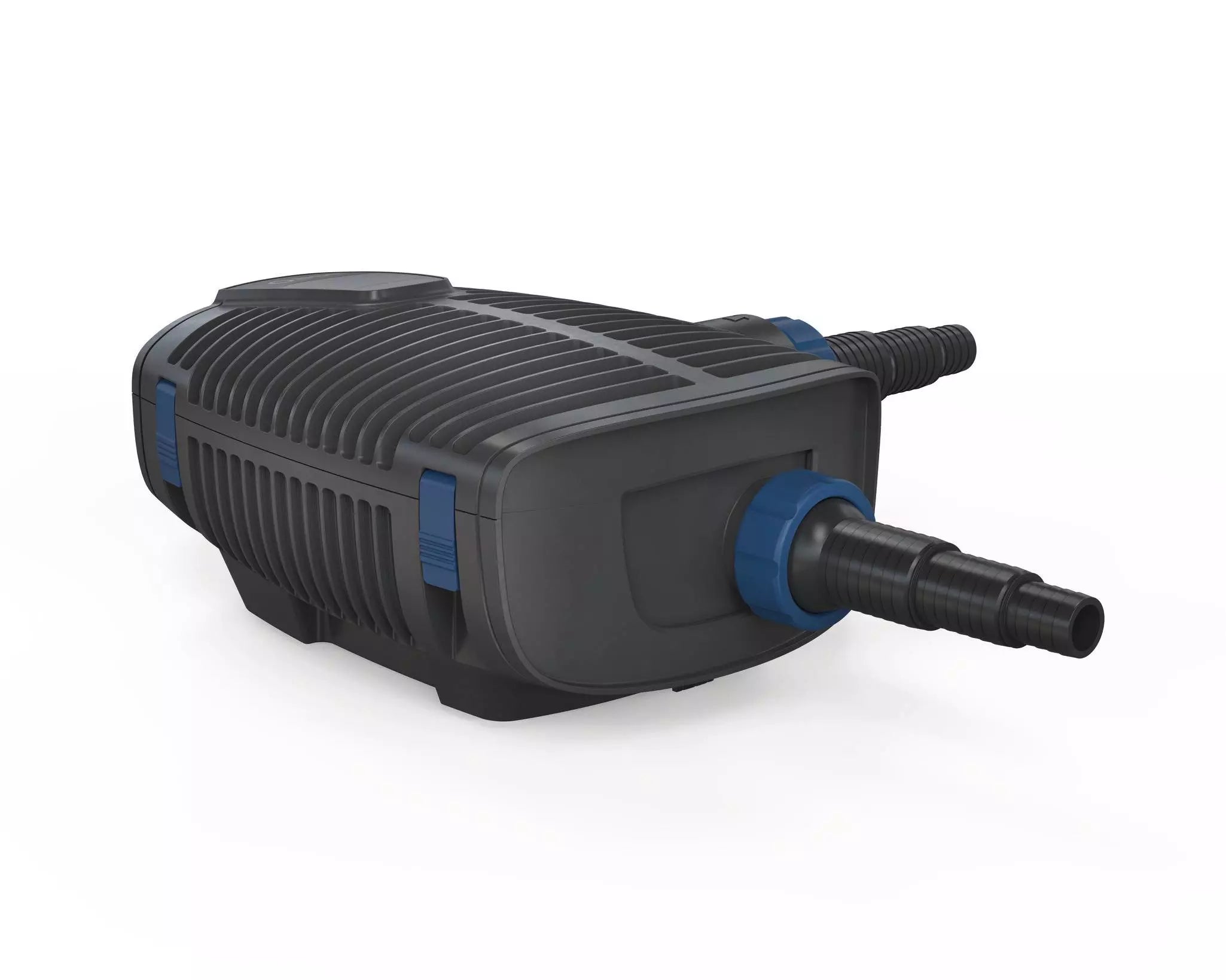

Eco Classic is the value range, from 2,600 to 17,400 litres an hour with an energy-efficient motor and the fittings in the box. Eco Premium is the one to choose if the pond runs year round. Its CORE 6 motor adjusts flow with the season. It lifts water higher for the same size and connects to the OASE Control app.
For a koi pond with a drum filter, or a waterfall with real height, step up to the AquaMax Eco Expert. For a swimming pond or natural pool, the 12 V Eco Premium models run on low voltage.
Size it to your filter first, then allow for the lift. Every metre the water climbs reduces the flow you actually get. Tell us the filter and the height. We will pick the model with you.
Why you'll love the Oase AquaMax Eco Pond Pump
Lower running costs
Energy-efficient motors on every model. Eco Premium adds Seasonal Flow Control.
Protected against running dry
Environmental Function Control guards the pump if the water drops or the intake blocks.
Moves the mess to the filter
Solids pass through to the filter, up to 8 mm on Classic and 11 mm on Premium.
In the pond or out of it
Run it submerged, or dry installed in a pump chamber.
Safe where people swim
The 12 V models run on low voltage for swimming ponds and natural pools.
Why you should consider an Oase pond pump
Oase is a German company that has engineered pond and water equipment since 1949. In Australia it is supplied by Aquatec Equipment, part of the Oase Group. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Talk it through before you order
Tell us the filter, the height the water lifts and the pipe run. We will pick the range and model. If a smaller pump will do, we will say so.
Call todayWork out the flow and head you need
Step one: what is the pump actually feeding?
| The job | Flow you need | How to get the number |
|---|---|---|
| A filter | The whole pond once an hour | Pond volume in litres is your litres per hour. A 6,000 L pond wants 6,000 l/h. |
| A waterfall or stream | By the width of the lip | Our rule of thumb: about 1,500 l/h for every 10 cm of weir width for a full sheet. |
| Both, off one pump | Add them together | Or split the flow with a valve and accept less of each. |
Step two: work out the head, which is what most people miss
- 1. Measure the vertical rise from the water surface to the outlet, in metres. That is static head.
- 2. Add roughly 10% of the hose length as friction. A 10 m hose run adds about 1 m of head.
- 3. Narrow hose costs you more. If you are using 25 mm where the pump takes 38 mm, expect to lose more again.
- 4. Now read the table: you need a pump whose max head comfortably beats your number, since flow falls away as head rises.
Step three: Classic, Premium or 12 V?
| Range | What you get | Choose it when |
|---|---|---|
| Eco Classic | Fixed speed, 2,600 to 17,400 l/h, heads to 3.7 m | The plain choice for a filter or a waterfall |
| Eco Premium | Variable speed, 5,000 to 21,000 l/h, heads to 6 m | You want to turn it down overnight, or the head is over 3.7 m |
| Eco Premium 12 V | Low voltage, 6,000 or 12,000 l/h | Safety matters most, such as a swimming pond |
Premium models draw as little as 10 W turned down, against a fixed 23 W and up on the Classic. Running cost over a decade often outweighs the purchase gap.
What it costs to run, since these run all year
| Model | Draw | Per day at 24 h | Per year |
|---|---|---|---|
| Eco Classic 5500 | 60 W | $0.43 | $158 |
| Eco Classic 11500 | 100 W | $0.72 | $263 |
| Eco Classic 17500 | 170 W | $1.22 | $447 |
| Eco Premium 5000 | 10 to 35 W | $0.07 to $0.25 | $26 to $92 |
| Eco Premium 13000 | 16 to 100 W | $0.12 to $0.72 | $42 to $263 |
| Eco Premium 21000 | 20 to 180 W | $0.14 to $1.30 | $53 to $473 |
Worked at 30c per kWh running 24 hours a day, which is our assumption rather than a manufacturer figure. Put your own tariff against the wattage and the sums are the same.
That spread is the whole argument for the Premium range. A Classic draws the same watts every hour it runs. A Premium turned down overnight, or through the cooler months, draws a fraction of its peak. Over ten years the difference usually outruns the price gap.
What to measure before you decide
- Pond volume in litres, for the filter turnover.
- Weir width in centimetres, if it feeds a waterfall.
- Vertical rise from water surface to outlet, in metres.
- Hose length and internal diameter.
- Whether you want to vary the speed, which only the Premium models do.
- Solids handling: 8 mm on the Classic, 11 mm on the Premium, which matters on a leafy pond.
Flow, then head, then range. If you would rather have it checked, send us the pond volume, the rise to the outlet and the hose run. We will pick the model.
See it in action
- Filmed by Oase
- Nothing loads until you press play
AquaMax Eco Premium product guide
Oase UK covers the 5000 to 13000 models and the features that matter when choosing a size.
Inside the AquaMax Eco Premium
What comes in the box, how the settings work and how to clean it. Oase's own guide to the current pump.
Oase AquaMax Eco Pond Pump specifications
| Max flow | Max head | Power | Outlet | Solids | Weight | SKU | |
|---|---|---|---|---|---|---|---|
| Eco Classic 2500 E | 2,600 l/h | 2.2 m | 23 W | G 1 | 8 mm | 2.71 kg | 86795 |
| Eco Classic 3500 E | 3,500 l/h | 2.6 m | 35 W | G 1 | 8 mm | 3.02 kg | 86796 |
| Eco Classic 5500 | 5,300 l/h | 2.8 m | 60 W | G 1 ½ | 8 mm | 3.46 kg | 56219 |
| Eco Classic 8500 | 8,300 l/h | 3.2 m | 80 W | G 1 ½ | 8 mm | 4.57 kg | 56220 |
| Eco Classic 11500 | 11,000 l/h | 3.3 m | 100 W | G 2 | 8 mm | 5.36 kg | 56221 |
| Eco Classic 14500 | 13,600 l/h | 3.4 m | 135 W | G 2 | 8 mm | 5.17 kg | 56235 |
| Eco Classic 17500 | 17,400 l/h | 3.7 m | 170 W | G 2 | 8 mm | 5.61 kg | 57687 |
| Eco Premium 5000 | 5,000 l/h | 3.5 m | 10 to 35 W | G 2 | 11 mm | 6.2 kg | 95317 |
| Eco Premium 7000 | 7,000 l/h | 4.0 m | 12 to 45 W | G 2 | 11 mm | 6.2 kg | 95318 |
| Eco Premium 9000 | 9,000 l/h | 4.5 m | 14 to 60 W | G 2 | 11 mm | 6.2 kg | 95319 |
| Eco Premium 13000 | 13,000 l/h | 5.0 m | 16 to 100 W | G 2 | 11 mm | 6.81 kg | 95320 |
| Eco Premium 17000 | 17,000 l/h | 5.5 m | 18 to 140 W | G 2 | 11 mm | 6.9 kg | 95321 |
| Eco Premium 21000 | 21,000 l/h | 6.0 m | 20 to 180 W | G 2 | 11 mm | 6.9 kg | 95322 |
| Eco Premium 6000 / 12 V | 6,000 l/h | 3.2 m | 45 W | G 2 | 10 mm | 8.03 kg | 50730 |
| Eco Premium 12000 / 12 V | 11,400 l/h | 3.2 m | 95 W | G 2 | 11 mm | 8.43 kg | 50382 |
Frequently asked questions
Eco Classic or Eco Premium?
Eco Classic is the value range with a fixed output. Eco Premium uses a newer CORE 6 motor, adjusts its flow with the season to save power and connects to the OASE Control app. It also lifts water higher for the same flow, which matters on a waterfall.
Which size do I need?
Start with the filter. Most filters have a flow range. The pump should sit inside it. Then allow for height: the higher the water lifts, the less flow you get. Tell us the filter and the lift. We will pick the model with you.
What does the model number mean?
It is close to the maximum flow in litres per hour at zero lift. The spec table shows the true maximum and the head for each model.
Can it run out of the water?
Yes. Every model can run submerged in the pond or dry installed in a pump chamber.
When would I choose 12 V?
For a swimming pond or natural pool, where low voltage is the safer choice. The 12 V models also have a second connection for extra filter accessories.
What does the warranty cover?
Oase give 3 years, plus a further 2 years when you register the pump with Oase. You call My Acre and we handle the claim with Aquatec, the Australian distributor.
