Oase Pond UV Clarifier
Koi and fish ponds with a pump-fed or gravity filter
New pond builds that want clear water from day one
Owners upgrading an old UV unit
Oase · Pond Filtration
The owner's insights on the Oase Pond UV Clarifier
If your pond turns pea green every summer, the filter is not failing. Green water is free-floating algae, too small for any filter to catch. A UV clarifier passes the water past a UVC lamp that breaks the algae down. The filter then collects what is left. The water clears.
This listing covers the whole Oase range. Vitronic is the entry point for garden ponds up to 60 m³. Bitron C adds a rotor that wipes the quartz tube as water flows, so the lamp keeps working between services. Bitron Eco adds an automatic bypass and a display. Bitron Premium is a gravity-fed unit for ponds up to 280 m³.
A UV clarifier does not replace a filter. It works with one. If your water is cloudy brown rather than green, the problem is usually filtration or waste. A better filter will do more than a bigger lamp.
Size it by pond volume and by the fish in it: koi need about four times the UVC of a pond with no fish. Tell us the volume, the fish and the pump flow. We will match the model to it.
Why you'll love the Oase Pond UV Clarifier
Clear water in summer
UVC light breaks down the floating algae that turn a pond green.
A lamp that cleans itself
On Bitron models a rotor keeps the quartz tube clear, so the light stays effective.
Safe to service
Bitron housings protect your eyes from UVC light. Bitron C turns the lamp off when opened.
Sized to your pond
From 11 W for a small garden pond to 240 W for a large koi or natural pond.
Fits most filters
Stepped hose tails suit Oase filters and those of other makers.
Why you should consider an Oase UV clarifier
Oase is a German company that has engineered pond and water equipment since 1949. In Australia it is supplied by Aquatec Equipment, part of the Oase Group. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Talk it through before you order
Tell us the pond volume, the fish and the pump you run. We will match the UVC power and range. If your pond needs a better filter before a bigger lamp, we will say so.
Call todayWork out which clarifier you need
Step one: pond volume, then halve it for fish
- 1. Length times width times average depth, in metres, gives cubic metres. One cubic metre is 1,000 litres.
- 2. No fish: read the first column below. Goldfish or similar: the second. Koi: the third.
- 3. Koi quarter the rating, because they produce the most waste and stir the bottom constantly.
Step two: read the wattage off your volume
| Your pond | No fish | With fish | Koi | Suits pump flow |
|---|---|---|---|---|
| Small garden pond | Vitronic 11 W to 10 m³ | 5 m³ | 2.5 m³ | Up to 1,700 l/h |
| Medium garden pond | Vitronic 18 W to 20 m³ | 10 m³ | 5 m³ | Up to 3,500 l/h |
| Larger garden pond | Vitronic 36 W to 40 m³ | 20 m³ | 10 m³ | Up to 6,000 l/h |
| Big pond, moderate flow | Vitronic 55 W to 60 m³ | 30 m³ | 15 m³ | Up to 8,500 l/h |
| Koi pond, high flow | Bitron C 55 W to 60 m³ | 30 m³ | 15 m³ | 8,000 to 30,000 l/h |
| Large koi system | Bitron C 110 W to 110 m³ | 55 m³ | 27.5 m³ | 12,000 to 40,000 l/h |
| Very large or commercial | Bitron Eco 240 W to 240 m³ | 120 m³ | 60 m³ | 10,000 to 50,000 l/h |
The full ladder, including the 24 W, 36 W, 72 W and Bitron Premium, is in the specifications below.
Step three: check it against your pump, not only your pond
- Find your pump flow in litres per hour, printed on the pump or its box.
- The clarifier has to sit inside the flow range above. Too fast and the water passes the lamp without enough exposure.
- Check the hose diameter matches: 19 to 38 mm on the Vitronic range, up to 50 mm inlets on the Bitron.
- If the system is gravity-fed rather than pumped, say so, because that changes which Bitron suits.
What a UV clarifier will and will not fix
| Problem | Does this help? | Why |
|---|---|---|
| Green, pea-soup water | Yes, this is exactly the job | It clumps free-floating algae so the filter can catch them |
| String algae on rocks | No | It only treats what flows past the lamp |
| Cloudy after a clean out | Partly | Suspended solids are a filter job |
| Green water with no filter | No | Clumped algae need somewhere to be caught |
A clarifier is half a system. It works with a filter, never instead of one.
Volume, fish, pump flow: three numbers and the table gives you the model. If you would rather have it checked, send us those three and we will confirm it.
See it in action
- Filmed by Oase
- Nothing loads until you press play

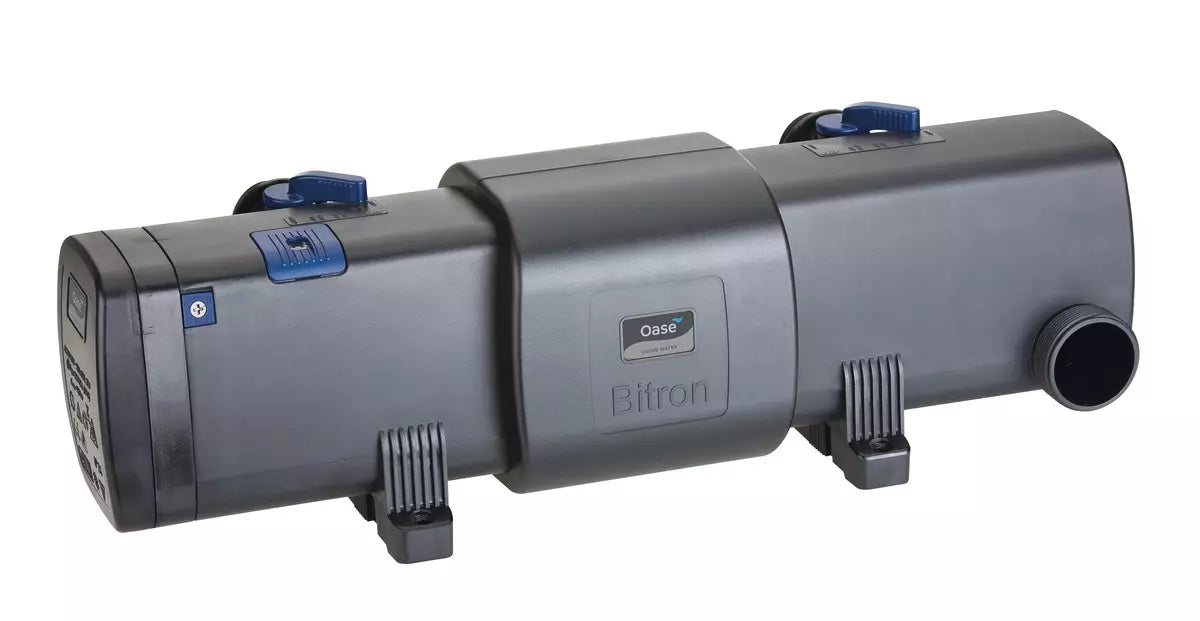

Bitron C features
Self-cleaning, adjustable flow and a visual check that the lamp is on. Oase explains each feature.
Bitron Eco in brief
Oase explains how the Bitron Eco holds water under the lamp for longer to clear it with less power.
Oase Pond UV Clarifier specifications
| UVC power | Pond size (no fish / fish / koi) | Flow | Connections | Cable | Weight | SKU | |
|---|---|---|---|---|---|---|---|

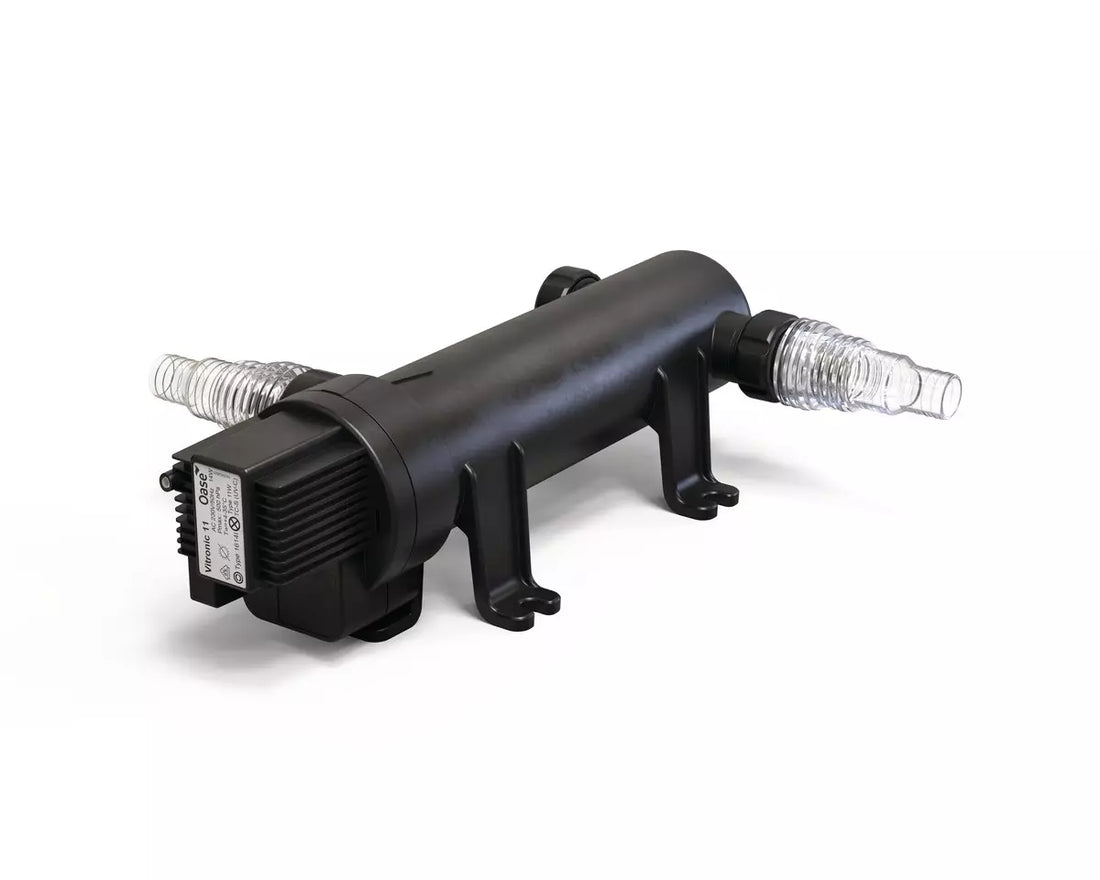

| Vitronic | 11 W | 10 / 5 / 2.5 m³ | Up to 1,700 l/h | 19 to 38 mm | 3 m | 1.26 kg | 88108 |
| Vitronic | 18 W | 20 / 10 / 5 m³ | Up to 3,500 l/h | 25 to 38 mm | 5 m | 2.10 kg | 56837 |
| Vitronic | 24 W | 25 / 12.5 / 6.5 m³ | Up to 4,500 l/h | 25 to 38 mm | 5 m | 2.21 kg | 56869 |
| Vitronic | 36 W | 40 / 20 / 10 m³ | Up to 6,000 l/h | 25 to 38 mm | 5 m | 2.24 kg | 56885 |
| Vitronic | 55 W | 60 / 30 / 15 m³ | Up to 8,500 l/h | 25 to 38 mm | 5 m | 2.36 kg | 57373 |
| Bitron C | 24 W | 25 / 12.5 / 6.5 m³ | 4,000 to 15,000 l/h | 25 to 38 mm | 5 m | 3.50 kg | 56804 |
| Bitron C | 36 W | 40 / 20 / 10 m³ | 8,000 to 30,000 l/h | Inlet 19 to 50 mm | 5 m | 3.98 kg | 56799 |
| Bitron C | 55 W | 60 / 30 / 15 m³ | 8,000 to 30,000 l/h | Inlet 19 to 50 mm | 5 m | 4.03 kg | 56823 |
| Bitron C | 72 W | 75 / 37.5 / 19 m³ | 12,000 to 40,000 l/h | Inlet 19 to 50 mm | 5 m | 6.40 kg | 56901 |
| Bitron C | 110 W | 110 / 55 / 27.5 m³ | 12,000 to 40,000 l/h | Inlet 19 to 50 mm | 5 m | 6.70 kg | 56902 |

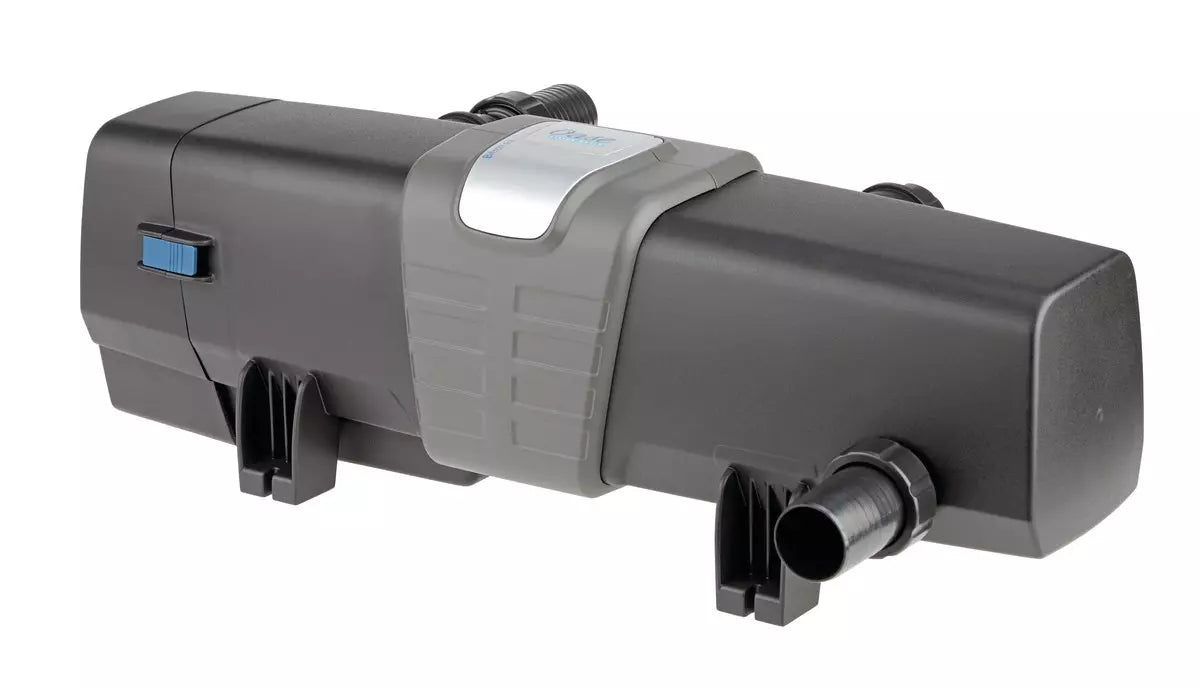

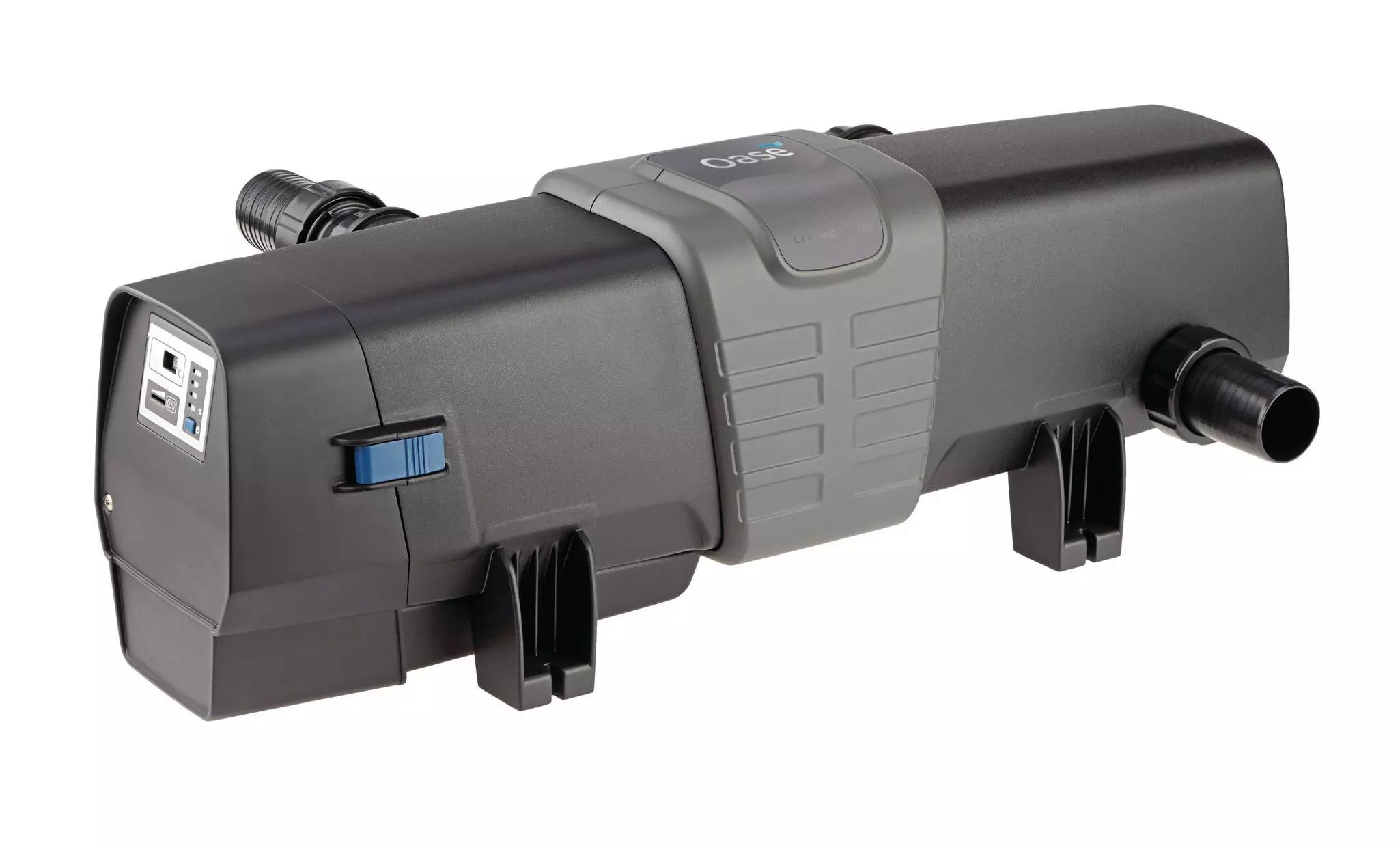

| Bitron Eco | 240 W | 240 / 120 / 60 m³ | 10,000 to 50,000 l/h | 38 / 50 mm | 5 m | 8.45 kg | 56410 |

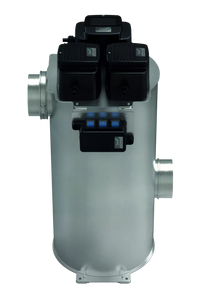

| Bitron Premium | 180 W | 280 / 160 / 100 m³ | Up to 100,000 l/h (50,000 gravity-fed) | DN 110 | 7 m | 25.27 kg | 73376 |
Frequently asked questions
Why is my pond green?
Green water is free-floating algae, too small for a filter to catch. A UV clarifier passes the water past a UVC lamp, which breaks down the algae cells. The filter then removes what is left.
Which size do I need?
Size it to the pond volume and the fish in it. Oase rate each model three ways: a pond with no fish, a pond with fish and a koi pond. Koi need the most. A 36 W unit, for example, suits a pond to 40 m³ or a koi pond to 10 m³.
Vitronic or Bitron?
Vitronic is the entry range and suits most garden ponds to 60 m³. Bitron C adds a self-cleaning rotor that keeps the quartz tube clear, so the lamp stays effective between services. Bitron Eco adds an automatic bypass and a display. Bitron Premium is for large gravity-fed ponds.
Where does it go?
Vitronic and Bitron C fit in the hose between the pond pump and the filter. Bitron Premium is gravity-fed with DN 110 connections and can sit before or after a ProfiClear filter.
Is it safe to open?
Bitron models are designed so the UVC light cannot damage your eyes. On Bitron C a safety switch turns the lamp off when the housing is opened.
How often does the lamp need replacing?
UVC lamps are wear parts and lose strength with use. The Bitron Eco counts lamp hours to 12,000 and shows the status on its display. Tell us your model and we will supply the right replacement.
Bring clear water home
Your price is beaten against any genuine like-for-like offer. We confirm delivery with you when you order. If anything goes wrong, we handle the warranty claim for you.
Speak to the team
