Cantilever Umbrellas

Shadowspec Serenity cantilever umbrella shading an outdoor dining table beside a lawn

A cantilever umbrella hangs its canopy from an arm beside the pole, so the space underneath stays clear. We range seven models across three brands, from the Umbrella Fellas Solstice at $1,599 to the Shadowspec Unity from $8,810. Every one ships with a mount included. Warranties run from one year on the Solstice frame to 15 years on Revolvashade frames.

Not sure which suits your space? Call Hayden on 03 7073 2116 or read the buying guide below.

In stock 7 productsSort

A cantilever umbrella shades from an offset arm, so the pole stands outside the shade and nothing blocks the space beneath it: ideal over a pool, a dining setting or a lounge. We range seven cantilevers from Shadowspec, Revolvashade and Umbrella Fellas, each with a mount included.

Buying guide

Which cantilever umbrella suits your space?

For a first cantilever on a budget, choose the Umbrella Fellas Solstice (from $1,599): it tilts two ways and comes with both a bolt-down plate and a ballast frame. For one canopy that tilts as well as rotates, choose the Shadowspec SU4 (from $3,490). For the easiest action, choose the Serenity (from $4,610): it lifts on a gas strut and locks in 16 positions. To shade a large terrace or a long pool edge from one mast, choose the Unity (from $8,810), with two to four canopies. For an Australian-made frame with the longest frame warranty, 15 years, choose a Revolvashade Signature Range (from $5,250) or the patterned Designer Collection (from $5,950).

All seven include a mount in the price and rotate a full 360°. They differ in how they open, whether the canopy tilts and how long the warranty runs.

ModelCanopies and sizesOpens byTilts?Warranty, frame / fabricFrom
Umbrella Fellas SolsticeOne: 3.0m square or 3.5m octagonWind-up crankYes, vertical and horizontal1 / 3 years$1,599
Umbrella Fellas HeliosOne: 4.0m octagonNot published by the makerYes, vertical2 / 5 years$3,399
Shadowspec SU4One: 3.0m square or 3.5m octagonWinding mechanism and leverYes, to near vertical3 / 5 years$3,490
Shadowspec SerenityOne: 2.5m or 3.0m square; 3.5m or 4.0m octagonGas strut, about 5 secondsNo; rotates through 16 positions6 / 10 years$4,610

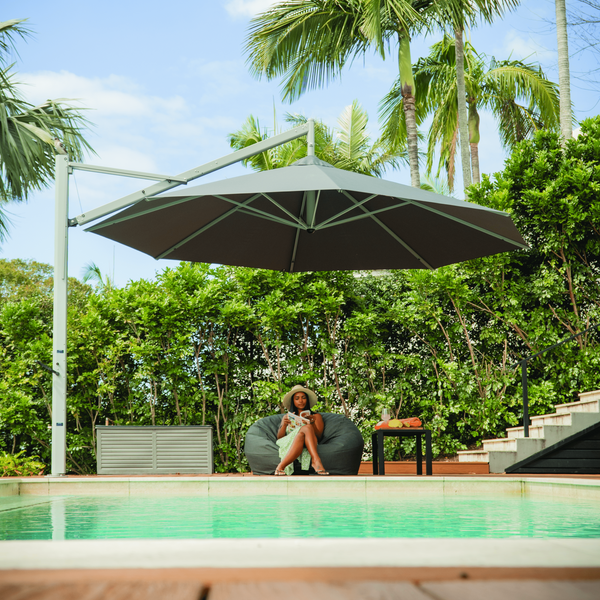

Revolvashade Signature RangeOne: 3.2m to 5.0m octagonSeatbelt winding mechanismYes; double tilt on some sizes15 / 10 years$5,250
Revolvashade Designer CollectionOne: 3.2m, 3.6m or 4.0m octagon, patterned canopiesSeatbelt winding mechanismYes; double tilt as an upgrade15 / 10 years$5,950
Shadowspec UnityTwo to four on one mast: Duo, Trio, Quattro or Octagon DuoGas strut on each canopyNo; each canopy rotates on its own6 / 10 years$8,810

Shadowspec warranty terms are for home use; commercial use carries shorter terms.

Want to angle the canopy against low morning or evening sun? Choose one that tilts: the Solstice, Helios, SU4 or a Revolvashade. Want it open in seconds and turned with one hand? The Serenity. Shading more than one zone from a single footing? The Unity. Want the biggest single canopy? The Revolvashade Signature Range runs to 5.0m.

A cantilever hangs the canopy from an arm beside the pole, so nothing stands in the middle of the table or at the pool edge. If the space is small or has no floor to give up, a wall mounted umbrella does a similar job from the wall. For a single table on a budget, a market umbrella costs less.

Cantilever umbrella prices

Our cantilever umbrellas cost $1,599 to $20,905. The Solstice is $1,599 and the Helios $3,399; the SU4 is $3,490 in any stock colour; the Serenity is $4,610 to $6,100 by size, frame and canopy; Revolvashade runs $5,250 to $6,950; the Unity is $8,810 to $20,905 by configuration.

ModelPriceMount includedOther mountsDelivery, by state
Umbrella Fellas Solstice$1,599Bolt-down plate and a cross-bar ballast frame, both includedWheeled base, sold separatelyPriced by state at checkout
Umbrella Fellas Helios$3,399Bolt-down plate and an in-ground spigot base, both includedNone neededPriced by state at checkout
Shadowspec SU4$3,490 to $4,380Surface plate or in-ground anchorFree-standing base, $900 more$189 to $572
Shadowspec Serenity$4,610 to $6,100Surface plate or in-ground anchorFree-standing base or wall bracket, $600 more$379 to $583
Revolvashade Signature Range$5,250 to $6,950Bolt-down or in-ground base, sized to the canopyStainless steel upgrade; call us$230 ($300 WA and NT), to a business address or freight depot only
Revolvashade Designer Collection$5,950 to $6,450Bolt-down or in-ground baseCall us$230 ($300 WA and NT), to a business address or freight depot only
Shadowspec Unity$8,810 to $20,905Surface plate or in-ground anchorFree-standing base, $600 more; wall bracket on the square Duo onlyDuo $60 to $795; Trio and Quattro $160 to $1,146

Prices and delivery as at November 2026. Delivery is priced by state and shown at checkout before you pay. Shadowspec figures are home delivery; a business address costs less. Collection from the Melbourne warehouse is available in Victoria. Shadowspec special order canopy colours cost more and take 8 to 10 weeks. Bases, covers and lights are on umbrella bases and accessories; Shadowspec accessories deliver free.

Can a cantilever umbrella work at your home?

Most homes can take one. It needs a solid fixing, a clear circle to turn in and some care in wind.

Can I put a cantilever umbrella on a timber deck?

Yes, on a surface plate bolted through the decking into the framing below. For the Serenity and Unity, Shadowspec's manual calls for four 12mm bolts into an extra 100 x 100mm joist between the bearers. A free-standing base needs no fixing, though a fixed mount holds better on an open, exposed deck.

Can a cantilever umbrella go on pavers or concrete?

Yes. A surface plate bolts to reinforced concrete at least 100mm thick, with no fixing within 150mm of the edge. Laying new pavers or pouring a slab? An in-ground anchor sets into the fresh concrete for the firmest fixing.

How much room does a cantilever umbrella need?

Allow for the canopy plus room to turn. The SU4 needs roughly 4.0m by 4.0m clear on its square canopy, or 4.5m by 4.5m on the octagon. A Serenity on the 3.0m square stands 2,908mm tall, with 2,219mm from the canopy edge to the ground.

How much weight does a cantilever umbrella base need?

More than a centre-pole umbrella of the same size, because the arm holds the canopy out to one side. Use the maker's base for your model rather than a generic weight. Our guide on how much weight a cantilever base needs explains why.

How do you stop a cantilever umbrella blowing in the wind?

No outdoor umbrella is windproof; we would not tell you otherwise. Fix it properly with an in-ground sleeve or a bolt-down plate, or a base weighted to the maker's specification. Close it whenever the wind gets up and never leave it open unattended. Shadowspec rates its umbrellas to Beaufort 5, winds of 29 to 38 km/h. More in how to stop a cantilever umbrella swaying.

What wind ratings do these umbrellas carry?

Each maker measures differently, so the figures do not compare directly. Shadowspec rates its umbrellas to Beaufort 5, winds of 29 to 38 km/h. Umbrella Fellas give the Solstice a 40km/h and the Helios a 60km/h factory wind rating, a measure of structural strength. Revolvashade tests its 3.2m and 3.6m sizes to 92.5km/h and calls that a breaking point. Whichever you choose, close it when it is not in use.

Can I use it at night?

The Serenity and Unity take Shadowspec's LED light, built into the top of the canopy: $298 with a Smart Battery or $390 wired to mains.

Can I see it in my backyard before I buy?

For the Serenity and Unity, yes. Shadowspec's free augmented reality tool places the umbrella in your own space through your phone camera.

What if it does not suit my space?

The Serenity and Unity in stock colours can be returned within 30 days of delivery, with no restocking cost; you pay the return freight. The SU4, SU10, Oasis and Retreat can be exchanged for another size or colour within 14 days if unused. Special order colours cannot be returned. Revolvashade and Umbrella Fellas returns are by arrangement, so talk to us before you order if you are unsure. The full terms are on our returns page.

Cantilever umbrella questions

Are cantilever umbrellas better than regular umbrellas?

For shade over a pool, a lounge or a whole dining setting, usually yes: the pole sits outside the shade and the canopy turns without moving furniture. The costs are a higher price, a heavier or fixed base and more care in wind. For one small table, a market umbrella does the job for less.

What is the best cantilever umbrella in Australia?

The best one is sized to your space and fixed properly. Four things settle it: budget, tilt, how many zones you need to shade and warranty. The Solstice tilts two ways from $1,599; the Serenity lifts on a gas strut from $4,610; Revolvashade gives a 15 year frame warranty from $5,250; the Unity shades up to four zones from $8,810.

How big should my cantilever umbrella be?

Allow about a metre of shade beyond each side of the table. On the Serenity, a 2.5m square suits a four seat setting, a 3.0m square six seats, a 3.5m octagon up to eight and a 4.0m octagon up to ten. Our guide to cantilever umbrella sizes covers lounges and pools.

How is a cantilever umbrella mounted?

On an in-ground sleeve set into concrete, a bolt-down base plate fixed to a slab, or a heavy free-standing base, depending on the model and your surface. A fixed mount, in-ground or bolt-down, is the most stable and the best choice near a pool or in an exposed position.

Where are these cantilever umbrellas made?

The Serenity and Unity are made in New Zealand and listed under FernMark licence 101031. Shadowspec is a New Zealand company. Revolvashade makes its umbrellas in its own Gold Coast factory. We have not confirmed where the SU4 or the Umbrella Fellas models are made, so we make no origin claim for them.

Talk it through first. Call Hayden on 03 7073 2116 and tell us about your space. We will help you choose the model, size and mount before you order.
