Oase BioSmart and BioTec Pond Filter
Koi ponds that have outgrown a small filter
Ponds paired with a Bitron UV clarifier
Owners who want less time cleaning sponges (BioTec)
Oase · Pond Filtration
The owner's insights on the Oase BioSmart and BioTec Pond Filter
Most pond problems come back to the filter. It does two jobs: it catches the dirt; it grows the bacteria that turn fish waste into something harmless. A filter that is too small, or too hard to clean, gets neglected. The water shows it within a season.

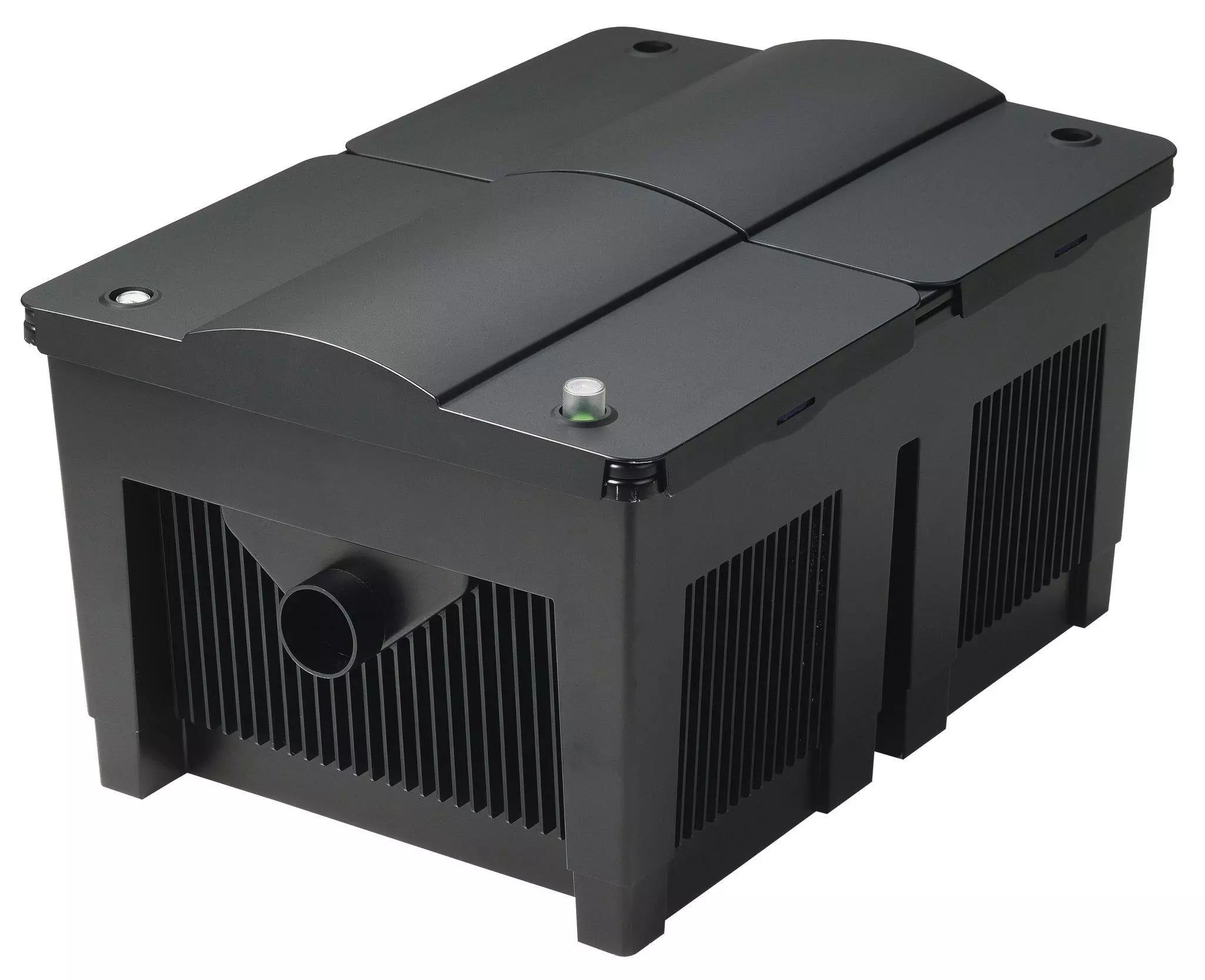

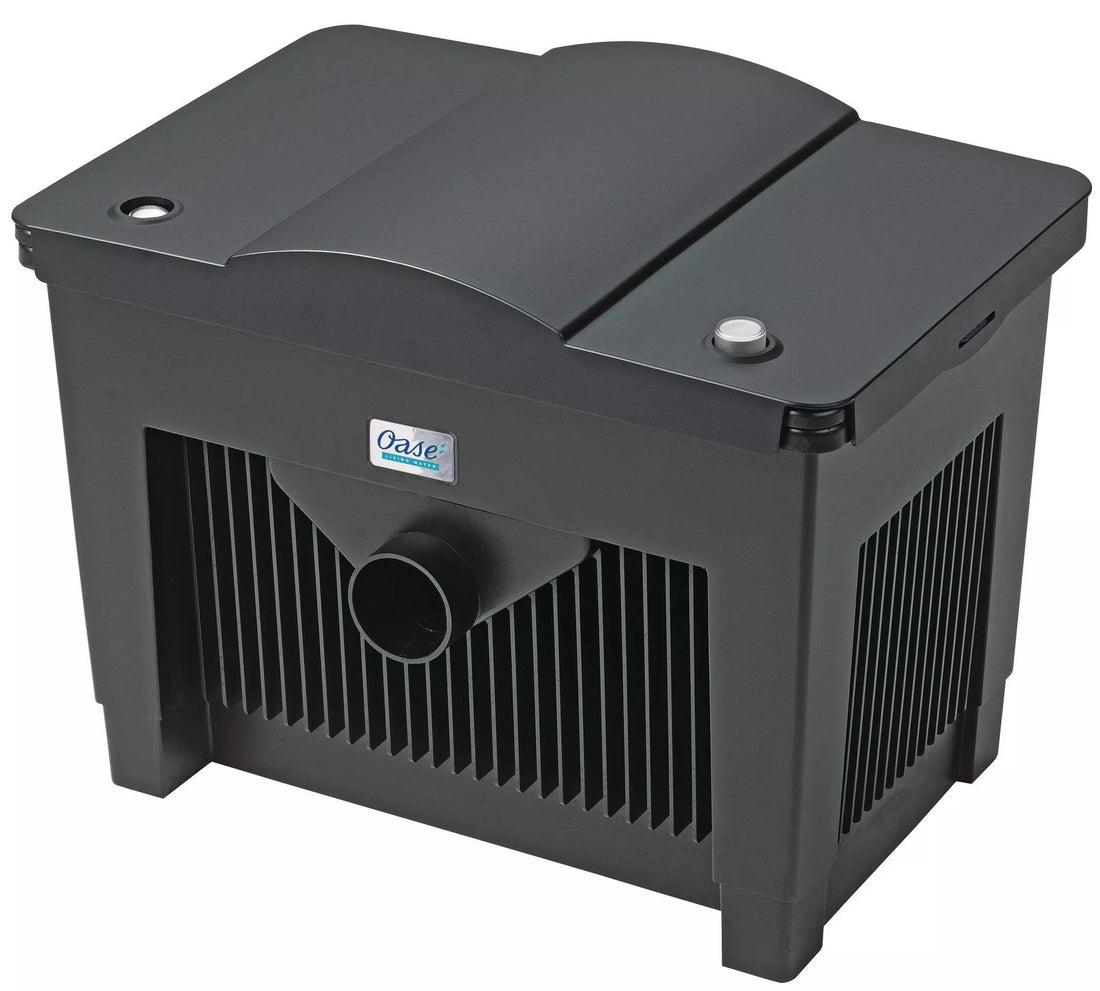

BioSmart is the simple end, a compact flow-through filter for garden ponds up to 36 m³ with displays that tell you when the sponges need attention. BioTec ScreenMatic² is the step up for ponds from 40 to 145 m³. A motor-driven screen belt strips out coarse dirt before it reaches the sponges and cleans itself, so the biology is left to work.
Koi change the sums. They produce far more waste than garden fish, so a koi pond needs a filter rated about four times its volume. For a large koi pond a drum filter such as the ProfiClear Premium is the stronger choice.
Both sit beside the pond, fed by a pump, with the clean water returning by gravity. Tell us the pond volume, the fish and the pump you run. We will match the filter to it.
Why you'll love the Oase BioSmart and BioTec Pond Filter
Clear water and healthy fish
Filter sponges catch dirt and host the bacteria that break down fish waste.
Less cleaning with BioTec
A self-cleaning screen belt removes coarse dirt before it clogs the sponges.
Clean it where it sits
BioTec sponges clean inside the filter. A bottom drain flushes out sludge.
Know when to service
BioSmart displays how dirty the sponges are and the water temperature.
Hides in the garden

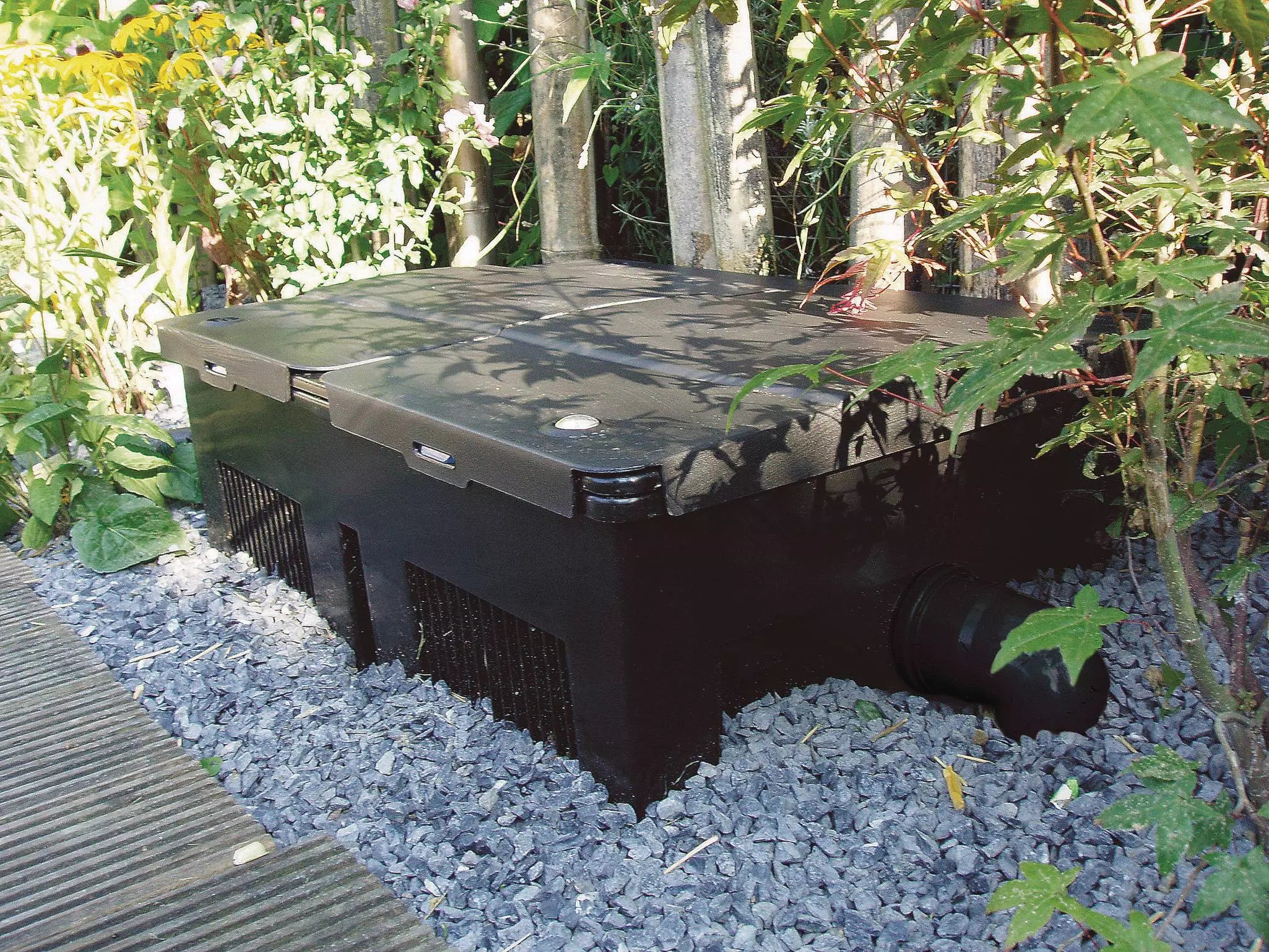

The BioSmart housing can be buried to a third of its height.
Ready for UV
Both ranges connect directly to Oase Bitron UV clarifiers.
Why you should consider an Oase pond filter
Oase is a German company that has engineered pond and water equipment since 1949. In Australia it is supplied by Aquatec Equipment, part of the Oase Group. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Talk it through before you order
Tell us the pond volume, the fish and the pump you run. We will match the filter and UV clarifier. If a smaller filter will do, we will say so.
Call todayWork out which filter you need
Step one: volume, then what lives in it
- 1. Length times width times average depth, in metres, gives cubic metres.
- 2. Find your volume in the first column below, then read across to the column that matches your fish.
- 3. A filter sized for an empty pond will not hold up once fish are in it. Size for the fish you plan to keep, not the ones you have today.
Step two: read your model
| Model | No fish | With fish | Koi | Max pump flow |
|---|---|---|---|---|
| BioSmart 18000 | 18 m³ | 9 m³ | 4.5 m³ | 5,500 l/h |
| BioSmart 36000 | 36 m³ | 18 m³ | 9 m³ | 8,000 l/h |
| BioTec ScreenMatic² 40000 | 40 m³ | 20 m³ | 10 m³ | 9,000 l/h |
| BioTec ScreenMatic² 60000 | 60 m³ | 30 m³ | 15 m³ | 11,000 l/h |
| BioTec ScreenMatic² 90000 | 90 m³ | 45 m³ | 22.5 m³ | 12,500 l/h |
| BioTec ScreenMatic² 145000 | 145 m³ | 72 m³ | 36 m³ | 17,500 l/h |
Your pump must not exceed the max flow. Too much flow pushes water through faster than the bacteria can work on it.
Step three: BioSmart or BioTec?
| Question | BioSmart | BioTec ScreenMatic² |
|---|---|---|
| How does it handle debris? | You rinse the sponges | A motorised screen lifts debris out automatically |
| Time on maintenance | Hands-on, a few times a season | Much less; the screen does the coarse work |
| Pond size it suits | Up to 36 m³ | Up to 145 m³ |
| Best for | A garden pond with a modest fish load | Koi, heavy stocking, or anyone who wants it to look after itself |
Step four: check it physically fits
- These sit above the water line, so you need a spot beside the pond, ideally screened by planting.
- BioSmart is 382 by 555 by 408 mm. The BioTec 40000 is 788 by 590 by 445 mm.
- The BioTec 145000 is 1334 by 891 by 815 mm and 107 kg empty, which is a landscaping decision rather than a shelf.
- Water returns to the pond by gravity, so the outlet has to sit above the pond surface.
Volume, fish, pump flow, then space. If you would rather have it checked, send us those and a photo of where it would sit. We will confirm the model.
See it in action
- Filmed by Oase
- A full clean, start to finish
- Nothing loads until you press play
Cleaning the BioTec ScreenMatic²
Oase walk through a full clean: the screen, the sponges and the sludge chamber.
Oase BioSmart and BioTec Pond Filter specifications
| Pond size (no fish / fish / koi) | Max flow | Filter sponges | Dimensions (L × W × H) | Weight | Warranty | SKU | |
|---|---|---|---|---|---|---|---|
| BioSmart 18000 | 18 / 9 / 4.5 m³ | 5,500 l/h | 4 | 382 × 555 × 408 mm | 6 kg | 3 years | 56776 |
| BioSmart 36000 | 36 / 18 / 9 m³ | 8,000 l/h | 9 | 382 × 555 × 408 mm | 10.5 kg | 3 years | 56641 |
| BioTec ScreenMatic² 40000 | 40 / 20 / 10 m³ | 9,000 l/h | 8 | 788 × 590 × 445 mm | 21 kg | 2 + 1 years | 57694 |
| BioTec ScreenMatic² 60000 | 60 / 30 / 15 m³ | 11,000 l/h | 8 | 788 × 590 × 545 mm | 24 kg | 2 + 1 years | 57695 |
| BioTec ScreenMatic² 90000 | 90 / 45 / 22.5 m³ | 12,500 l/h | 16 | 788 × 590 × 645 mm | 27.5 kg | 2 + 1 years | 46178 |
| BioTec ScreenMatic² 145000 | 145 / 72 / 36 m³ | 17,500 l/h | 18 | 1334 × 891 × 815 mm | 107 kg | 2 + 1 years | 93037 |
Frequently asked questions
Which size do I need?
Size it to the pond volume and the fish. Oase rate each model for a pond with no fish, a pond with fish and a koi pond. The number in the name is the largest pond in litres with no fish. Koi need a filter rated about four times the pond volume.
BioSmart or BioTec?
BioSmart is a simple, compact filter for garden ponds up to 36 m³. BioTec ScreenMatic² adds a motor-driven screen that removes coarse dirt before it reaches the sponges. It cleans that screen automatically, so the sponges need cleaning far less often.
Where does it sit?
Beside the pond, fed by a pond pump. The BioSmart housing can be buried to a third of its height to hide it. The cleaned water returns to the pond by gravity, often over a stream or waterfall.
Do I need a UV clarifier as well?
For clear water, usually yes. The filter removes dirt and breaks down waste. A UV clarifier deals with the free-floating algae that turn water green. Both ranges connect directly to Oase Bitron clarifiers.
How do I clean it?
On BioTec the sponges are cleaned inside the filter. A bottom drain with slide flushes out sludge. On BioSmart a display shows when the sponges need attention.
What does the warranty cover?
Oase give 3 years on BioSmart. BioTec ScreenMatic² has 2 years, plus 1 on registration with Oase. You call My Acre and we handle the claim with Aquatec.
