The owner's insights on the ProfiClear Premium Drum Filter
A drum filter is what serious koi keepers move to once they are tired of cleaning sponges. Water passes through a rotating stainless steel drum lined with fine mesh. When the mesh loads up, a spray bar rinses it with pond water and sends the waste out through a slide valve. You stop scrubbing filters on a Saturday morning.

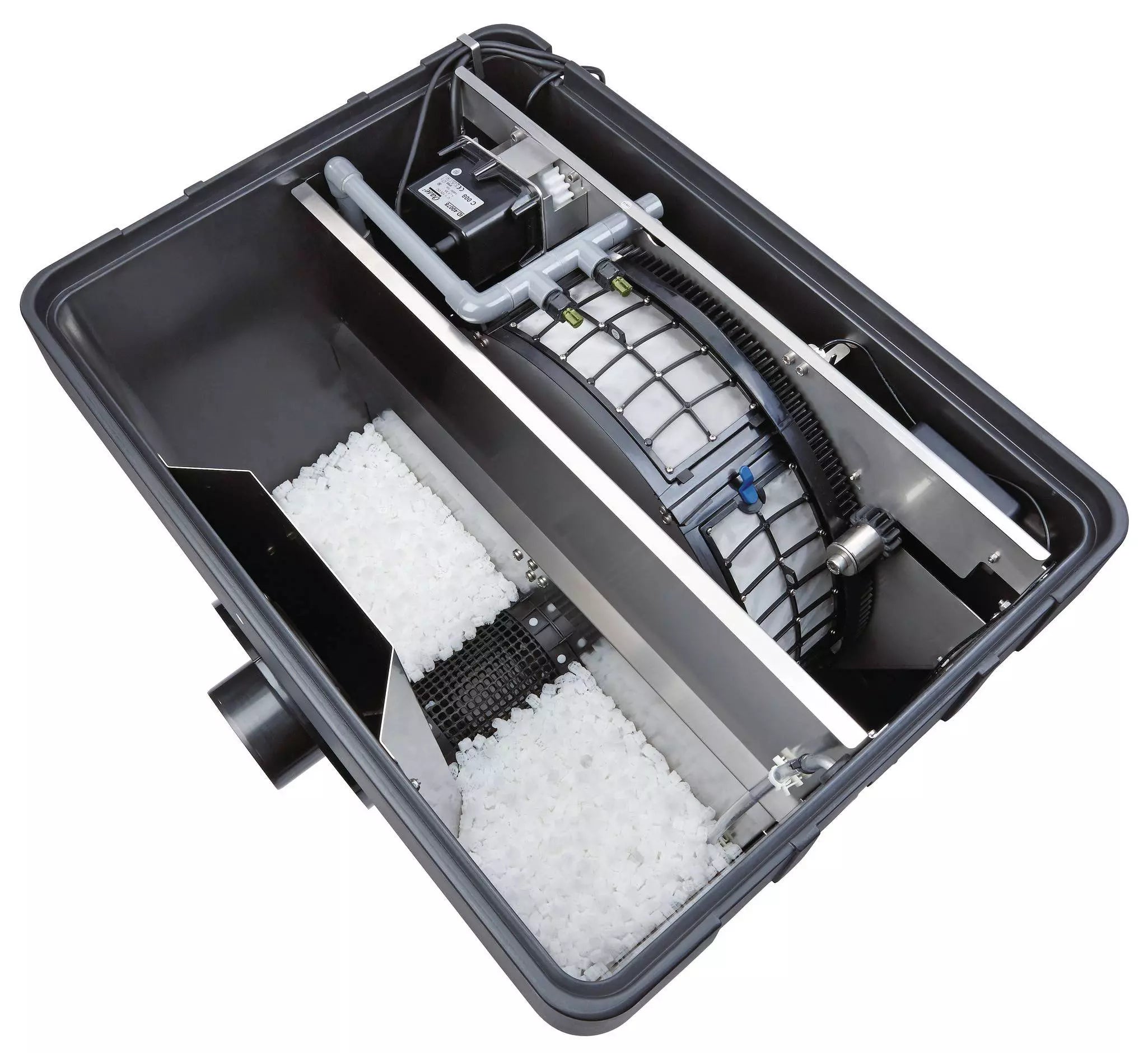

The ProfiClear Premium is Oase's drum filter range, made in Germany apart from the rinse pump. Compact-M suits a small to medium koi pond and arrives with Hel-X 13 biomedia and aeration already fitted, so it filters mechanically and biologically in one housing. DF-L doubles the flow. DF-XL is for large koi, natural and swimming ponds.
It is not for a small garden pond with a few goldfish. A drum filter is a plumbing project: a mains power point, a waste line to drain and a pump sized to the filter. For a smaller pond, a pressure filter does the job for a fraction of the price.
Decide pump-fed or gravity-fed before you dig. Pump-fed sits beside the pond and suits most existing ponds. Gravity-fed needs bottom drains with the filter set close to water level, so it belongs in a new build. Send us your pond volume and fish load before you order. We will match the model, pump and UV clarifier to it.
Why you'll love the ProfiClear Premium Drum Filter
No more sponge cleaning
The drum rinses itself on a sensor, on a timer or at the press of a button, using filtered pond water. No fresh water connection is needed.
Fine filtration first
Mesh sieves capture particles down to 60 µm before the water reaches the biology or the UV clarifier.
Quiet beside the house
Extensive noise insulation keeps the drum and its rinse cycle quiet.
Service without tools
Sieve elements lift out by hand. Rakes on the sieves pull string algae and larger particles out of the drum.
Settings from your phone
Connect it to the OASE Control system and adjust the rinse settings from the app.
Grows with the pond
The system is modular. Moving Bed and outlet modules can be added as the pond asks more of it.
Why you should consider an Oase pond filter
Oase is a German company that has engineered pond and water equipment since 1949. In Australia it is supplied by Aquatec Equipment, part of the Oase Group. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Talk it through before you order
Send us the pond volume, fish stock and a photo of where the filter will sit. We will match the drum, pump and UV clarifier. If a smaller filter will do, we will say so.
Call todayWork out which drum filter you need
Step one: pump-fed or gravity-fed, settled before anything else
| Your pond | Choose | Why |
|---|---|---|
| An existing pond with a pump sitting in it | Pump-fed | No excavation. The pump pushes water up into the filter beside the pond. |
| A new build, or a pond with bottom drains | Gravity-fed | Water arrives by gravity at pond level; the pump sits after the filter. |
| Not sure, but the pond is already dug | Pump-fed | Gravity-fed needs drains in the floor, which means starting again. |
This is a build decision, not a preference. Gravity-fed has to be planned before you dig.
Step two: size by flow, not by hope
| Model | Pump-fed flow | Gravity-fed flow | Rated pond size |
|---|---|---|---|
| Compact-M | 7,500 to 12,500 l/h | 7,500 to 16,500 l/h | Ponds to 80 m³ pump-fed |
| DF-L | 10,000 to 25,000 l/h | 10,000 to 33,000 l/h | Not stated by Oase |
| DF-XL | 25,000 to 50,000 l/h | Pump-fed only | Koi to 100 m³; natural and swim ponds to 530 m³ |
On a koi pond most builders turn the water over once every one to two hours. Take your volume, divide by the hours; that is your flow.
Step three: check it physically fits before you buy
| What to check | Compact-M | DF-L | DF-XL |
|---|---|---|---|
| Height above water level | 32 cm pump-fed, 10.5 cm gravity | 40 cm pump-fed, 11.5 cm gravity | 52 cm pump-fed |
| Footprint | 885 x 685 mm | 830 x 600 mm | 1330 x 875 mm |
| Weight empty | 82.5 to 87.5 kg | 75.5 to 76.5 kg | 128.5 kg |
| Outlets | 1 x DN 110 | 2 x DN 150 | 2 x 180 mm |
It also needs a mains power point and a waste line to drain the rinse water. No mains water connection is required; the drum rinses with filtered pond water.
What arrives and what does not
In the box
- ✓The drum filter, with its stainless steel drum and sieve elements
- ✓Microcontroller with a digital temperature display
- ✓Rinse system, driven by filtered pond water
- ✓Compact-M: 40 litres of Hel-X 13 biomedia with aeration fitted
Not included
- ×A mains water connection. It is not needed: the drum rinses with pond water.
- ×The waste line the rinse water drains to. Plan where that goes before you install.
- ×A pump on pump-fed systems, or the post-filter pump on gravity-fed.
- ×DF-L and DF-XL: the Moving Bed module, which is sold separately.
- ×The ProfiClear pump chamber on gravity systems, sold separately.
- ×A UV clarifier. A drum removes particles; green water is a separate job.
At 75 to 128 kg empty, plan the standing position and the access before delivery day.
What to measure before you decide
- Pond volume in cubic metres, plus how heavily it is stocked with koi.
- Whether the pond has bottom drains. This decides pump-fed against gravity-fed on its own.
- The flat area available beside the pond, against the footprints above.
- Height difference between that spot and the water surface.
- Where rinse waste water can drain to, since the filter discharges it on every cycle.
- Whether you also need a UV clarifier. A drum takes out particles; green water from free algae is a separate job.
Feed type, then flow, then space. If you would rather have it checked, send us the pond volume, the fish load and a photo of where the filter would sit. We will confirm the model.
See it in action
- Filmed by Oase
- Nothing loads until you press play
How the ProfiClear Premium works
An Oase specialist walks through the drum filter and explains what it does for a koi pond.
ProfiClear Premium XL for large ponds
The larger modular system for big koi ponds and lakes, shown by Oase.
ProfiClear Premium Drum Filter specifications
| Compact-M pump-fed | Compact-M gravity-fed | DF-L pump-fed | DF-L gravity-fed | DF-XL pump-fed | |
|---|---|---|---|---|---|
| SKU | 47008 | 47010 | 47003 | 47005 | 73365 |
| Flow rate | 7,500 to 12,500 l/h | 7,500 to 16,500 l/h | 10,000 to 25,000 l/h | 10,000 to 33,000 l/h | 25,000 to 50,000 l/h |
| Rated pond size | Ponds to 80 m³ | Not stated by Oase | Not stated by Oase | Not stated by Oase | Koi ponds to 100 m³; natural and swim ponds to 530 m³ |
| Coarse debris extraction | 80 µm | 80 µm | 60 µm | 60 µm | 60 µm |
| Sieve elements | 6 | 6 | 8 | 8 | 16 |
| Filter intake surface | 1,135 cm² | 1,135 cm² | 3,454 cm² | 3,454 cm² | 6,900 cm² |
| Inlets | 2 (50 mm and 2" for Bitron) | 2 × DN 110 | 2 (50 mm and 2 × 2" for Bitron) | 4 × DN 110 | 5 (3 × 2" and 2 × DN 110) |
| Outlets | 1 × DN 110 | 1 × DN 110 | 2 × DN 150 | 2 × DN 150 | 2 × 180 mm |
| Height above water level | 32.0 cm | 10.5 cm | 40.0 cm | 11.5 cm | 52.0 cm |
| Rinse system | 2 × 3.5 l/min at 4 bar | 2 × 3.5 l/min at 4 bar | 4 × 2.5 l/min at 6 bar | 4 × 2.5 l/min at 6 bar | 8 × 2.5 l/min at 7 bar |
| Power while cleaning | 670 W | 670 W | 1,050 W | 1,050 W | 1,600 W |
| Dimensions (L × W × H) | 885 × 685 × 820 mm | 885 × 685 × 820 mm | 830 × 600 × 820 mm | 830 × 600 × 820 mm | 1330 × 875 × 820 mm |
| Net weight | 87.5 kg | 82.5 kg | 75.5 kg | 76.5 kg | 128.5 kg |
| Biomedia | 40 L Hel-X 13, aeration fitted | 40 L Hel-X 13, aeration fitted | Moving Bed module sold separately | Moving Bed module sold separately | XL Moving Bed module sold separately |

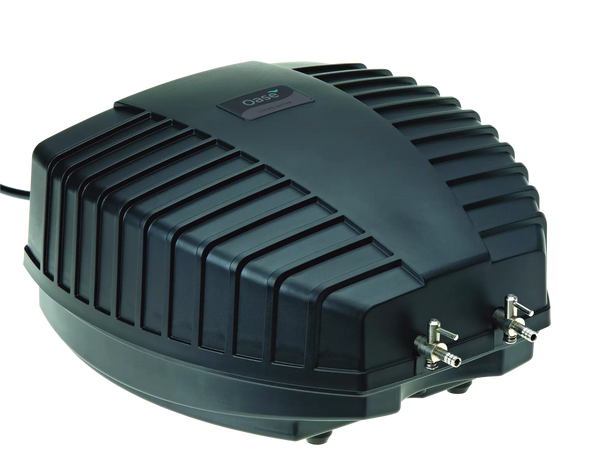

| Connects to | AquaOxy 2500, Bitron C 72 to 110 W, Bitron Eco 120 to 240 W | AquaOxy 2500, Bitron Premium, ProfiClear pump chamber Compact | Bitron C 72 to 110 W, Bitron Eco 120 to 240 W | Bitron Gravity | Bitron Premium, XL drain module, XL Moving Bed |
| Control | Microcontroller, digital temperature display | Microcontroller, digital temperature display | Microcontroller, digital temperature display | Microcontroller, digital temperature display | Microcontroller, digital temperature display |
| Rinsing | Manual, sensor or time interval | Manual, sensor or time interval | Manual, sensor or time interval | Manual, sensor or time interval | Manual, sensor or time interval |
| Warranty | 2 years, plus 1 year on registration | 2 years, plus 1 year on registration | 2 years, plus 1 year on registration | 2 years, plus 1 year on registration | 2 years, plus 1 year on registration |
What is included and what you supply
In the box

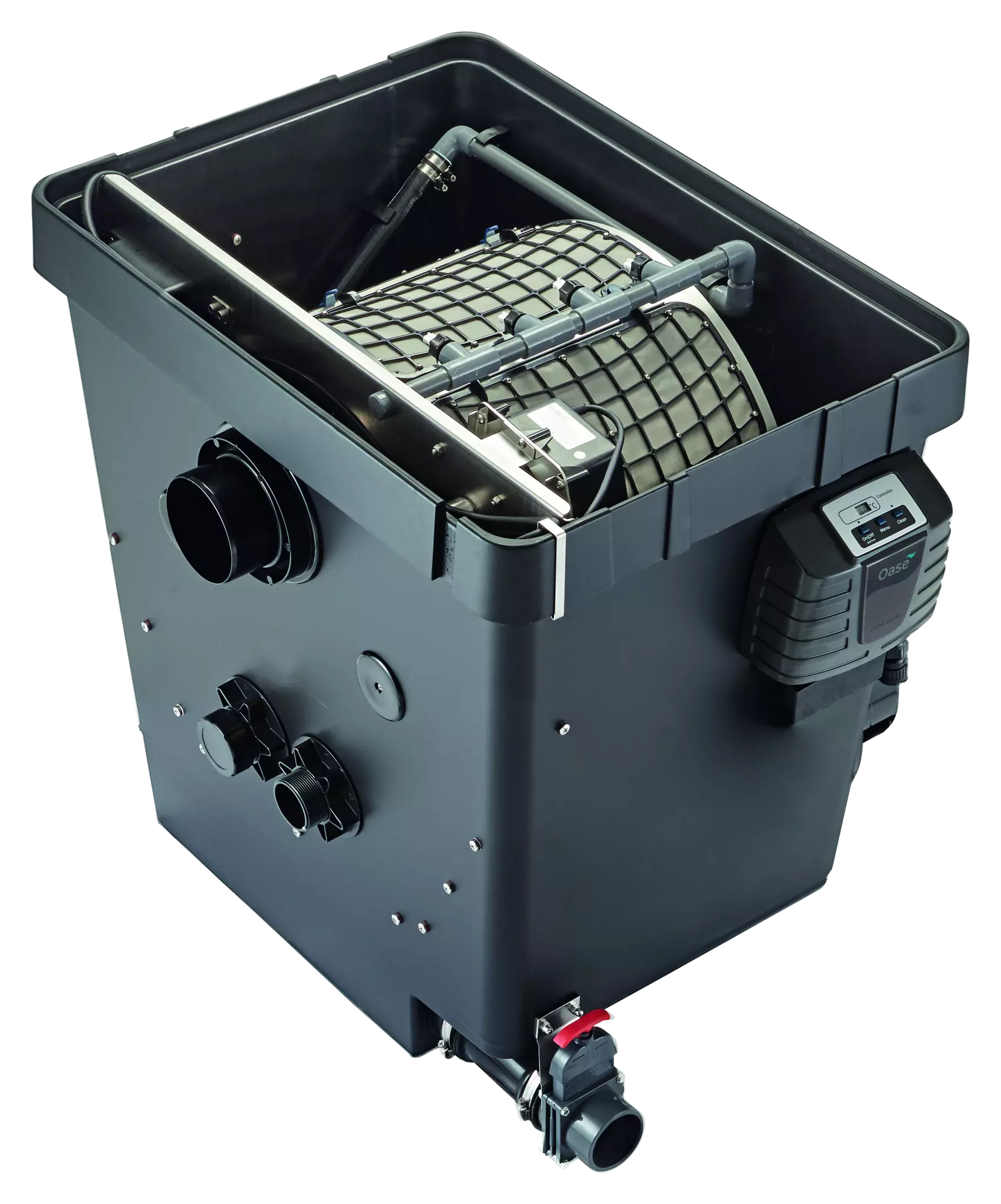

- Drum filter housing with stainless steel drum and removable sieve elements
- Microcontroller with digital temperature display
- Slide valve on the waste outlet
- Compact-M: 40 L of Hel-X 13 biomedia with aeration fitted
- DF-L: high-pressure rinse pump
You supply
- A pond pump sized to the model (pump-fed), or bottom drains and a pump after the filter (gravity-fed)
- A UV clarifier for green water
- A weatherproof mains power point
- A waste line to drain
- An OASE Garden Controller if you want app control
Frequently asked questions
Pump-fed or gravity-fed?
Pump-fed sits beside the pond and takes water from a pump in the pond, which is how most existing ponds are converted. Gravity-fed needs bottom drains with the filter set close to water level; the pump sits after the filter. It belongs in a new build, so decide before you dig.
Which model suits my pond?
Size it by flow. Compact-M runs 7,500 to 12,500 l/h pump-fed (16,500 l/h gravity-fed) and is rated for ponds to 80 m³ pump-fed. DF-L runs 10,000 to 25,000 l/h pump-fed (33,000 l/h gravity-fed). DF-XL runs 25,000 to 50,000 l/h, for koi ponds to 100 m³ or natural and swimming ponds to 530 m³. Send us your volume and fish load. We will match the model to it.
Does it need a fresh water connection?
No. The drum is rinsed with filtered pond water, so no mains water connection is needed. It does need a mains power point and a waste line to drain.
Do I still need a UV clarifier?

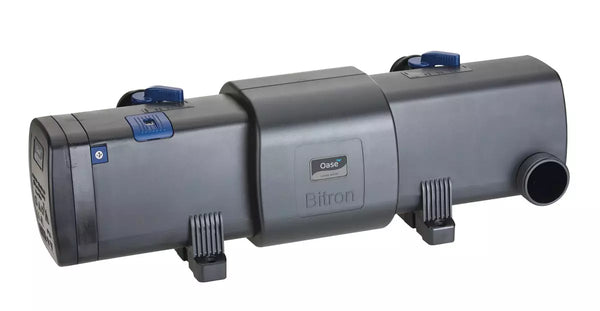

A drum filter takes particles out of the water. Green water from free-floating algae is the job of a UV clarifier. Each model connects to Oase Bitron clarifiers.
How quiet is it?
Oase fit extensive noise insulation to the housing for quiet running. Site it away from bedrooms if you have the choice.
Can I control it from my phone?
Settings can run through the OASE Control app. Oase state that the DF-XL needs a Garden Controller Home or Cloud, or an InScenio FM-Master, to use those functions. Existing systems can be upgraded with a separate kit.
What does the warranty cover?
Oase give 2 years, plus a further year when you register the filter with Oase. You call My Acre and we handle the claim with Aquatec, the Australian distributor. The Australian Consumer Law guarantees apply regardless.
