Oase Spillway Box Waterfall Weir
Large ponds with a wide cascade
Landscapers building a natural rock fall
Upgrades from a narrow pipe outlet
Oase · Waterfall Construction
The owner's insights on the Oase Spillway Box Waterfall Weir
The difference between a waterfall that looks built and one that looks natural is often where it starts. A pipe outlet gives a narrow gush. A spillway box fills behind the rocks and lets the water go in a wide, even sheet.

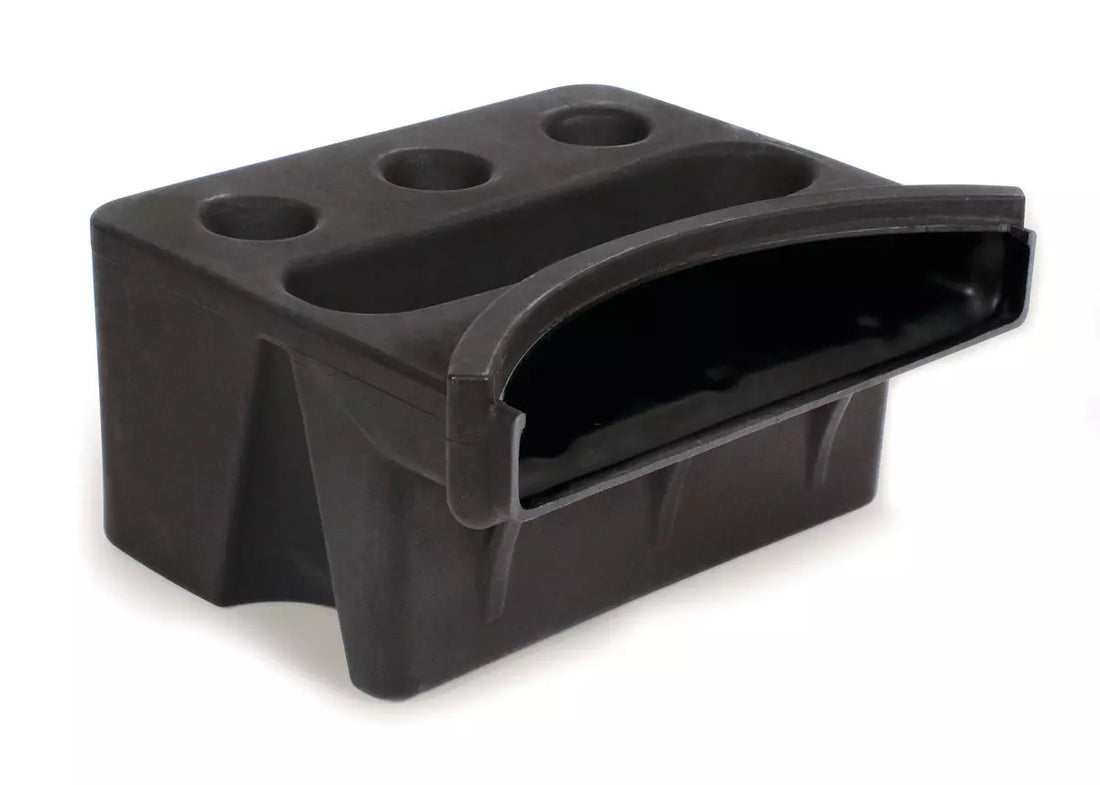

Oase cast the Spillway Box in one piece, strong enough to carry heavy stones. The pond liner fixes to the back. You build rock over it until only the lip shows.
Choose by the width of the fall: 500, 670 or 970 mm. Each width has a matched AquaMax Eco pump range, so the sheet of water stays full rather than trickling.
Tell us the width, height and length of the fall. We will match the box and the pump.
Why you'll love the Oase Spillway Box Waterfall Weir
A natural sheet of water
Water leaves in a wide, even sheet rather than a gush.
Carries heavy rock
A single-cast body you can build over and hide.
Liner fixes to the back
Water runs from the lip onto the liner.
Matched to AquaMax pumps
Each width lists the pump range that suits it.
Three widths
Overflow lips of 500, 670 and 970 mm.
Why you should consider an Oase spillway
Oase is a German company that has engineered pond and water equipment since 1949. In Australia it is supplied by Aquatec Equipment, part of the Oase Group. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Work out which box and pump you need
Step one: how wide do you want the water to fall?
| Sheet of water | Box | Connection | Matched pump range |
|---|---|---|---|
| 500 mm wide | Spillway Box 15000 | G 2 internal thread | AquaMax Eco Premium 7000 to 17000 |

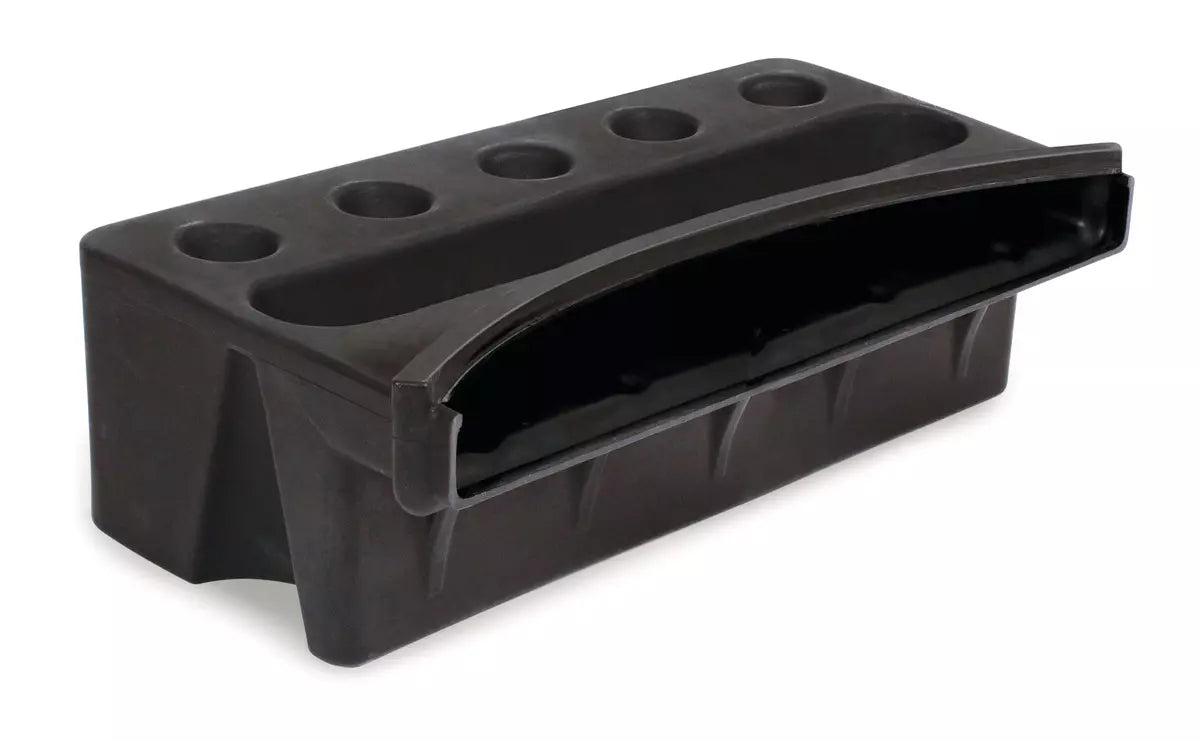

| 670 mm wide | Spillway Box 22500 | G 2 internal thread | Premium 9000 to Expert 26000 |

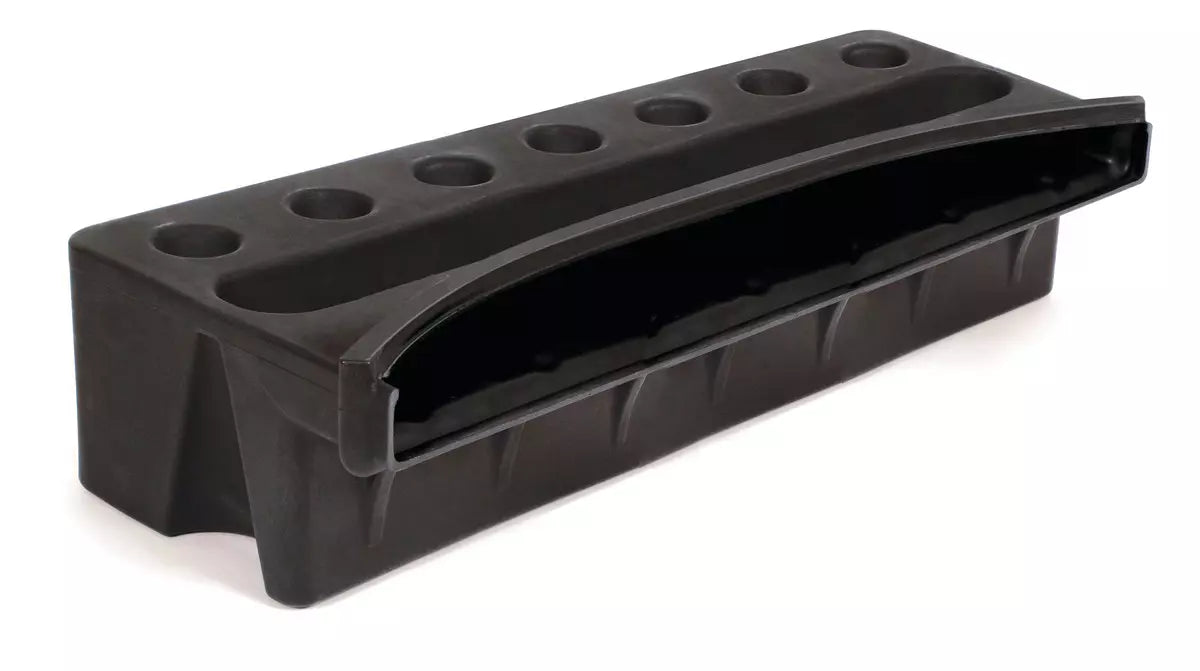

| 970 mm wide | Spillway Box 35000 | G 3 internal thread | Premium 13000 to Expert 36000 |
Stand where you will view the fall from and mark the width on the ground. That measurement is the whole first decision.
Step two: size the pump for the height, not only the width
- 1. Measure the vertical rise from the pond surface to the spillway lip, in metres. That is your head height.
- 2. Measure the length of hose from pump to box, then add roughly 10% of that length to the head as friction.
- 3. Pick a pump from the matched range above that still delivers its flow at that head. Pump curves drop off sharply with height.
- 4. If the pump is at the bottom of its range and the fall is high, go up one model rather than accept a trickle.
Step three: check the build sequence suits your site
- The liner fixes to the back of the box, so the liner has to reach that high.
- The box is single cast and carries heavy stone, so plan the rock that hides it before you set the level.
- Only the lip should show when the rock is built over it.
- The 35000 includes an adapter from 3 inch NPT to 2 inch external thread.
What arrives and what does not
In the box
- ✓The single-cast spillway box in the width you chose
- ✓Spillway Box 35000: an adapter from 3 inch NPT external thread to 2 inch external thread
Not included
- ×A pump. Pair it with an AquaMax Eco from the matched range.
- ×Hose, clamps and fittings between pump and box.
- ×The pond liner, which fixes to the back of the box.
- ×The rock you build over it to hide everything but the lip.
The adapter is listed for the 35000 only. If you need one for a smaller box, ask before you order rather than at the hardware shop on a Sunday.
What to measure before you decide
- Width of the fall you want, in millimetres.
- Vertical height from the pond surface to the lip, in metres.
- Hose run from the pump position to the box, in metres.
- The pump you own, or plan to buy, with its flow at that head.
- Whether the liner can reach the back of the box at that height.
Width first, then head height, then the pump. If you would rather have it checked, send us those three numbers and we will match the box to the pump for you.
Talk it through before you order
Tell us the width and height of the fall. We will match the spillway and the pump to it.
Call todayOase Spillway Box specifications
| Overflow width | Size (L × W × H) | Max flow | Suits pumps | Connection | Warranty | SKU | |
|---|---|---|---|---|---|---|---|
| Spillway Box 15000 | 500 mm | 521 × 474 × 260 mm | 15,000 l/h | AquaMax Eco Premium 7000 to 17000 | G 2 internal thread | 2 years | 72946 |
| Spillway Box 22500 | 670 mm | 699 × 474 × 260 mm | Not listed by Oase | AquaMax Eco Premium 9000 to Expert 26000 | G 2 internal thread | 2 years | 72947 |
| Spillway Box 35000 | 970 mm | 1003 × 486 × 260 mm | 35,000 l/h | AquaMax Eco Premium 13000 to Expert 36000 | G 3 internal thread | 2 years | 72948 |
Frequently asked questions
What does a spillway box do?
It sits at the top of a waterfall or stream. Water from the pump fills the box and spills over the lip in a wide, even sheet. It looks far more natural than water from a pipe.
Which width do I need?
Match it to the fall and the pump. The 500 mm box suits AquaMax Eco Premium 7000 to 17000. The 670 mm box suits Premium 9000 to Expert 26000. The 970 mm box suits Premium 13000 to Expert 36000.
How does it join the liner?
The pond liner fixes to the back of the box, so the water runs from the lip onto the liner.
Can I hide it?
Yes. The single-cast body carries heavy stones, so you can build rock over it until only the lip shows.
Does it include a pump?
No. Pair it with an AquaMax Eco pump in the range shown. We will size the pump to the height and length of the run.
What does the warranty cover?
Oase give 2 years. You call My Acre and we handle the claim with Aquatec.
Build a waterfall that looks natural
Your price is beaten against any genuine like-for-like offer. We confirm delivery with you when you order. If anything goes wrong, we handle the warranty claim for you.
