DAB Deep Well Surface Pump
Surface mounted cast iron deep well pump, 1.1 or 1.85 kW, with or without a pressure switch.
The owner's insights on the DAB deep well surface pump
The DAB deep well surface pump is a surface mounted pump with a cast iron casing, listed by the supplier for tank transfer. It comes in two sizes. The DP151 is listed at 58 L/min and 60 m of head. The DP251 is listed at 72 L/min and 70 m. Each size has an M model and an MP model.
The MP models are listed with a pressure switch. The M models are not, so plan to add your own pressure control if you choose one. Each pump weighs 27 to 33 kg, so two people should lift it into place.
Check the details before you order. The supplier's listing gives no lift depth, so tell us how deep your water is and we will check the model with the supplier. Installation is not included.
Why you'll love the DAB deep well surface pump
Two sizes, four models
Choose the DP151 or the DP251, with or without a pressure switch, to match the flow and head you need.
Cast iron casing
The supplier lists a cast iron casing. At 27 to 33 kg, this is a pump to fix in one place.
Head up to 70 m
The supplier lists 70 m of maximum head for the DP251 and 60 m for the DP151, to compare with your own needs.
Flow up to 72 L/min
The supplier lists 58 L/min for the DP151 and 72 L/min for the DP251, figures to weigh against your daily use.
Pressure switch models

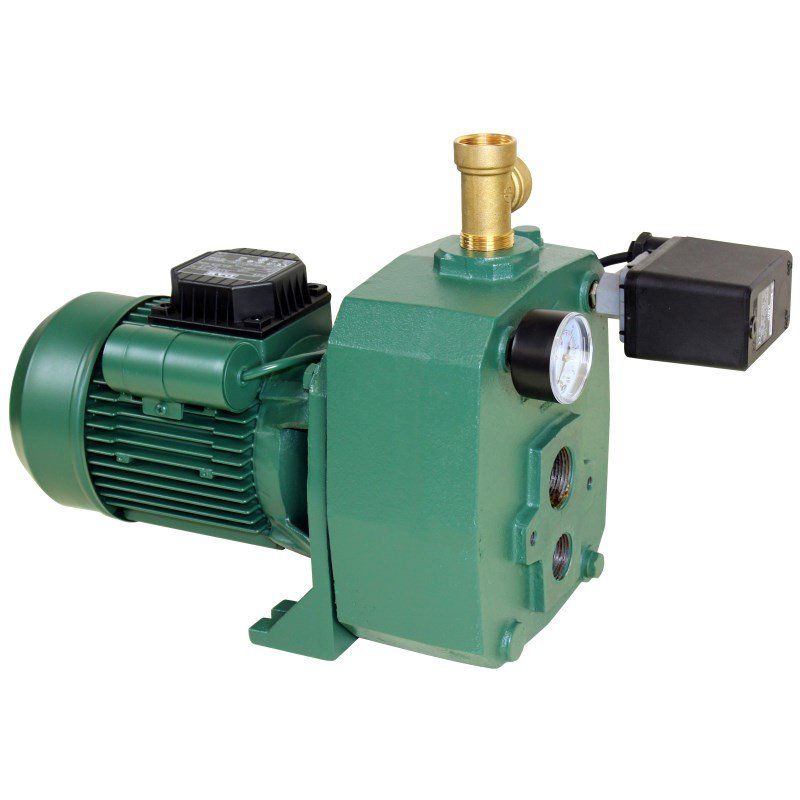

The MP models are listed with a pressure switch, so you do not need to source one yourself.
Listed for tank transfer
The supplier lists the use as tank transfer, which means moving water out of a tank to where you use it.
Why you should consider a DAB pump
The supplier lists every model in this range under the DAB Pumps brand, with its flow, head and pressure figures. We have set those figures out on this page so you can compare the models. Our price-beat promise applies to these pumps. Delivery is a flat rate by state. If anything is wrong, you call us rather than the maker.
Not sure which model you need?
Tell us your water source, how deep it is and what you want to run. We will check the model before you order.
Speak to the teamDAB deep well surface pump specifications
| Brand | DAB Pumps |
|---|---|
| Models | DP151M, DP151MP, DP251M and DP251MP |
| Pump type (supplier listing) | M models: multistage jet pump. MP models: jet pressure system |
| Suitable for (supplier listing) | Tank transfer |
| Casing | Cast iron |
| Motor power | DP151M and DP151MP: 1.1 kW; DP251M and DP251MP: 1.85 kW |
| Power | Electric, 240 V |
| Flow rate | DP151M and DP151MP: 58 L/min; DP251M and DP251MP: 72 L/min |
| Maximum head | DP151M and DP151MP: 60 m; DP251M and DP251MP: 70 m |
| Maximum pressure | DP151M and DP151MP: 6 bar (608 kPa); DP251M and DP251MP: 7 bar (709 kPa) |
| Inlet and outlet | 1 1/4 inch BSPF inlet and 1 inch BSPF outlet, all models |
| Pressure switch | MP models only |
| Taps (supplier listing) | DP151M and DP151MP: 5 taps; DP251M and DP251MP: 7 taps |
| Weight | DP151M: 27.4 kg; DP151MP: 28.08 kg; DP251M: 32 kg; DP251MP: 32.5 kg |
| Installation | Not included. Plumbing and electrical work need licensed trades |
| Delivery | Flat-rate freight by state, added at checkout |
| Product codes | DAB-DP151M, DAB-DP151MP, DAB-DP251M, DAB-DP251MP |
Choosing between the M and MP models

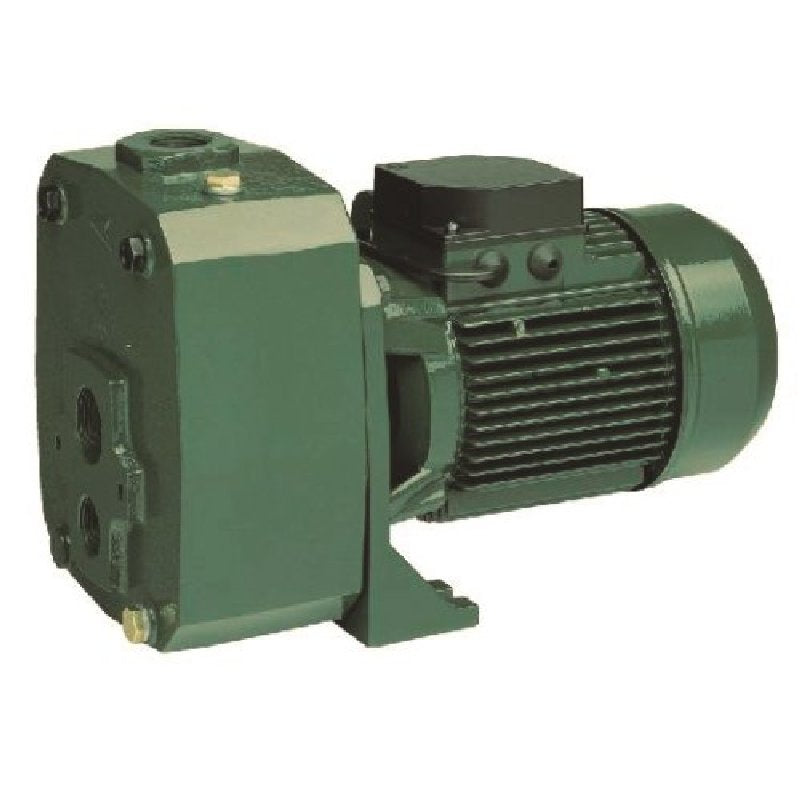

The M models are listed without a pressure switch. The MP models are listed with one. The supplier lists the same motor, flow and head for each M and MP pair, so the choice comes down to the switch. If you pick an M model, plan to add your own pressure control. If you are unsure which suits your set up, call us.
Choosing between the DP151 and DP251
The DP151 models are listed at 1.1 kW, 58 L/min, 60 m of head and 6 bar. The DP251 models are listed at 1.85 kW, 72 L/min, 70 m of head and 7 bar. The DP251 lists more flow and head. The DP151 has the smaller motor. The supplier also lists 5 taps for the DP151 models and 7 taps for the DP251 models.
What to check before you order
- Water source: the supplier's listing gives no lift depth. Tell us how deep your water is before you order.
- Power: the motors are listed as electric, 240 V. A licensed electrician should connect the pump.
- Weight: the pumps weigh 27 to 33 kg, so plan for two people to lift one.
- Connections: every model has a 1 1/4 inch inlet and a 1 inch outlet.
- Pressure control: the M models are listed without a pressure switch, so you add your own.
- Installation: not included. Plumbing work needs a licensed plumber.
Frequently asked questions
What does MP mean on the DAB deep well pump?
MP models are listed with a pressure switch. The M models are listed without one. The supplier lists the same motor, flow and head for each M and MP pair, so the choice comes down to the switch.
What flow and head does the DAB deep well pump give?
The supplier lists the DP151 models at 58 L/min and 60 m maximum head. The DP251 models are listed at 72 L/min and 70 m. Call us if you want to check either against your own use.
How deep can the DAB deep well pump draw from?
The supplier's listing does not give a lift depth. Tell us how deep your water is and what you plan to run. We will check the model with the supplier before you order.
What power does the DAB deep well pump need?
The supplier lists an electric motor on 240 V, rated 1.1 kW on the DP151 models and 1.85 kW on the DP251 models. A licensed electrician should connect it.
Do I need a plumber to install the DAB deep well pump?
Yes, plumbing and electrical work should be done by licensed trades. Every model has a 1 1/4 inch inlet and a 1 inch outlet. We can help you check the fit before you order.
What is the DAB deep well pump listed for?
The supplier lists the use as tank transfer. Tell us your water source and what you want to supply. We will help you check that the model suits.
How is delivery charged for the DAB deep well pump?
Delivery is a flat rate by state, added at checkout. The estimate on this page uses your state. For NT and remote areas, call us before ordering.
Who handles a fault with the DAB deep well pump?
We do. If the pump arrives damaged or faulty, contact us rather than the maker. We arrange the fix with the supplier. Your rights under Australian Consumer Law apply either way.
Compare with similar
DAB Deep Well Surface Pump
Two sizes, the DP151 and DP251, each with or without a pressure switch.
Best for a buyer who wants up to 70 m of head, as listed by the supplier.
DAB Cast Iron Garden and House Pump
Six models from 1.1 to 2.2 kW, with or without a pressure switch. Flow is listed up to 175 L/min.
Best for a household that wants more flow from a surface mounted pump.
Bring the pump home
Our price-beat promise applies. Delivery is a flat rate by state. If anything is wrong, you call us rather than the maker.
Speak to the team
