Oase Preformed Pond Shell
Courtyards and smaller back gardens
Marginal planting on built-in shelves
A defined shape you can set in a weekend
Oase · Garden Ponds
The owner's insights on the Oase Preformed Pond Shell
A preformed shell is the shortest route from bare lawn to a pond holding water. The shape is decided for you, which is the point: dig to it, sit it in, backfill, fill. There is no liner to cut, fold or weld, nothing to puncture on a sharp stone.
Oase mould these with stepped depth zones rather than as a plain bowl. The shallow shelves hold marginal plants at the depth they want, while the deeper centre carries the volume. Planted out, the black edge disappears within a season.
Be clear on the limits. Three sizes run from 500 to 1000 litres, which is a garden pond rather than a fish pond. Plants thrive, a few small goldfish will live happily once a filter is running, koi will not. For koi you want depth and volume that a shell this size cannot give.
The shell is the only thing in the box. Pump, filter and lighting are chosen once you know what you are keeping, which we would rather do with you than sell you a set you do not need.
Why you'll love the Oase Preformed Pond Shell
No liner to cut
The shell holds water on its own, so there is nothing to fold or weld.
Shelves built in
Stepped depth zones put marginal plants at the right height.
A shape that reads well
Moulded with an organic outline rather than a plain bowl.
Three sizes
From 1.78 m long up to 2.4 m.
15-year guarantee
On the shell, handled by us through Aquatec.
Why you should consider an Oase pond shell
Oase is a German company that has engineered pond and water equipment since 1949. In Australia it is supplied by Aquatec Equipment, part of the Oase Group. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Work out which size fits
Step one: mark the footprint on the ground
- 1. Lay a hose or a rope in the shape and size below, in the spot you have in mind.
- 2. Live with it for a day. A pond always reads smaller once it is in the ground than it does on paper.
- 3. Allow another 30 cm of working room all the way around for backfilling, which you will get back when you edge it.
- 4. Check the whole footprint is level ground, or that you are prepared to cut into a slope on one side.
Step two: read the size off the table
| Size | Footprint | Volume | Overall height of the moulding |
|---|---|---|---|

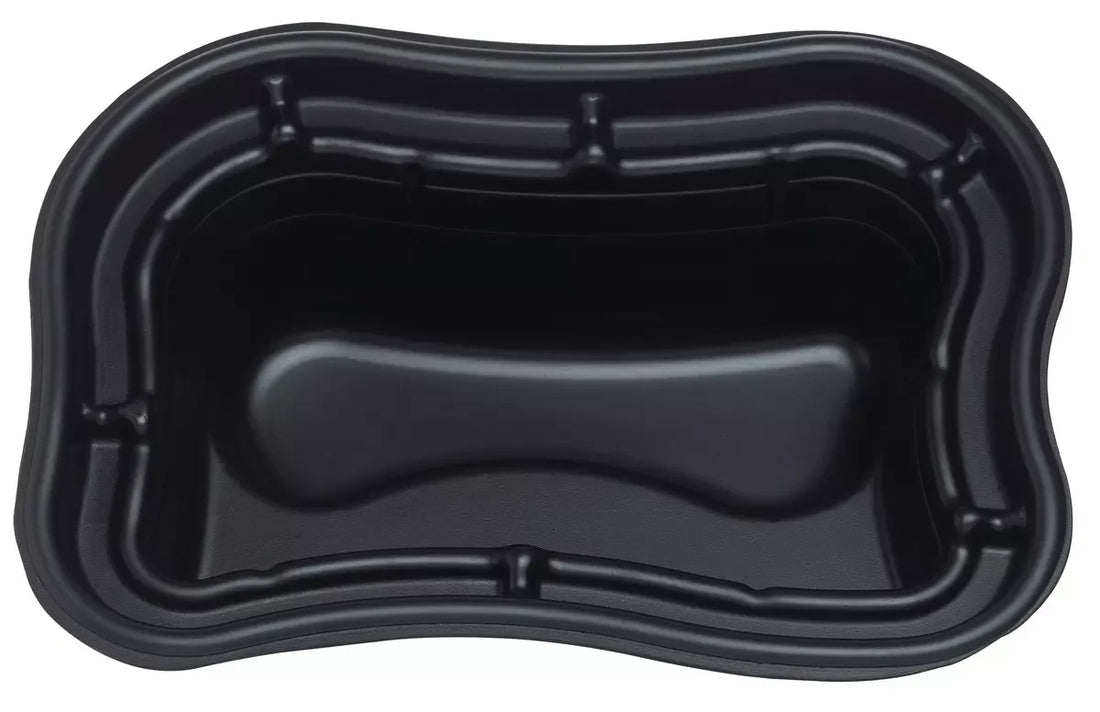

| PE 500 | 1.78 x 1.26 m | 500 litres | 0.56 m |

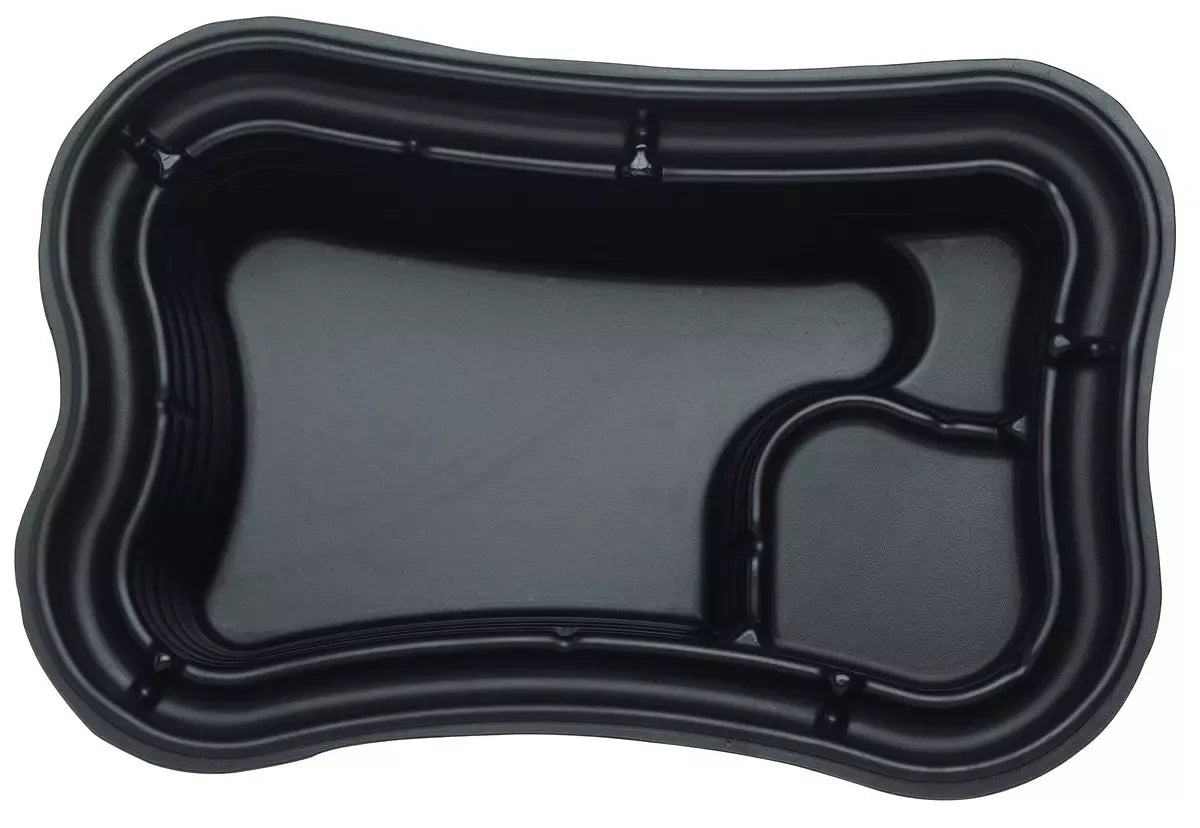

| PE 750 | 2.10 x 1.40 m | 750 litres | 0.60 m |

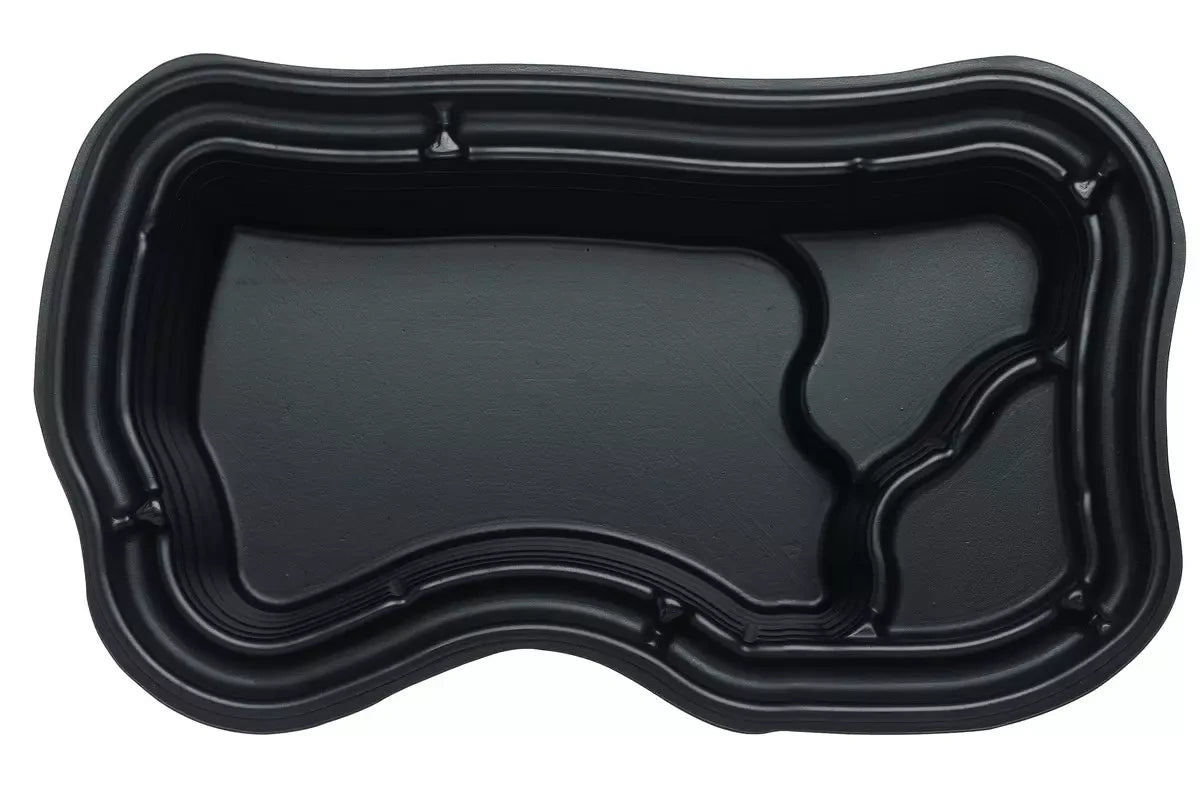

| PE 1000 | 2.40 x 1.40 m | 1000 litres | 0.62 m |
That height is the depth of the hole you dig, plus a bed of sand. It is not the water depth: Oase do not publish one, so ask us rather than assume.
Step three: be honest about what will live in it
| What you want | Does a shell suit? | Why |
|---|---|---|
| Water plants on shelves | Yes, this is what the shelves are for | Marginals sit at their natural depth |
| A few small goldfish | Yes, in the larger sizes with a filter | Volume and depth are modest, so stock lightly |
| Koi | No | Koi need far more depth and volume, plus much heavier filtration |
| A swimming or recreation pond | No | Look at a liner build instead |
What arrives and what does not
In the box
- ✓The moulded pond shell in the size you chose
- ✓Stepped depth zones for marginal planting, moulded in
- ✓A 15-year Oase guarantee on the shell
Not included
- ×Pump, filter, UV clarifier or lighting. All are chosen once you know what you are keeping.
- ×Bedding sand for under the shell, plus backfill for around it.
- ×Edging stone, gravel or planting to hide the rim.
- ×The excavation.
No liner or underlay is needed. The shell holds the water on its own.
What to measure before you decide
- The clear area you have, against the footprints above, plus about 30 cm around for working room.
- Whether the ground is level, or how much you will need to cut into a slope.
- What you will hit when you dig: services, tree roots, rock.
- Distance to an outdoor power point, if you want a pump, filter or light.
- Access to get the shell in: the 1000 is 2.4 m long, so think about gates and corners.
Mark the shape out first; it settles the size faster than any table. If you want the water depth or the shelf heights before you dig, ask us and we will measure a shell for you.
Talk it through before you order
Mark the footprint out first. If you want the water depth or the shelf heights before you dig, ask us and we will measure one.
Call todayOase preformed pond specifications
| Volume | Dimensions (L x W x H) | Net weight | Guarantee | SKU | |
|---|---|---|---|---|---|
| PE 500 | 500 litres | 1.78 x 1.26 x 0.56 m | 6.8 kg | 15 years | 36768 |
| PE 750 | 750 litres | 2.10 x 1.40 x 0.60 m | 15.2 kg | 15 years | 36769 |
| PE 1000 | 1000 litres | 2.40 x 1.40 x 0.62 m | 19 kg | 15 years | 36770 |
Frequently asked questions
How deep is the water?
Oase publish the overall height of the moulding, which is 0.56 m on the 500, 0.60 m on the 750 and 0.62 m on the 1000. They do not publish a water depth or the depth of each shelf. We would rather tell you that than quote you a number we cannot stand behind. Ask us and we will measure a shell before you buy.
Do I still need a liner?
No. The shell holds the water on its own. You need bedding sand under it and backfill around it, nothing else to make it watertight.
Can I keep fish in it?
A few small goldfish suit the larger sizes, once a filter is running. These are not koi ponds: koi need far more depth and volume than a shell of this size gives, along with much heavier filtration.
What else do I need?
A pump if you want movement. A filter if you want clear water with fish. A UV clarifier if it greens up in summer. None are included. Tell us what you plan to keep and we will size them together.
How do I install it?
Dig to the shape, allowing for a level bed of sand, sit the shell in, check it is level in both directions, then backfill in stages while filling with water so the sides are supported evenly. Oase do not publish an installation guide for these on the Australian site.
What is the guarantee?
Oase give 15 years on the shell. You call My Acre on 1300 515 620 and we take the claim up with Aquatec.
Get the shape in the ground
Your price is beaten against any genuine like-for-like offer. We confirm delivery with you when you order. If anything goes wrong, we handle the warranty claim for you.
