Oase Filtral UVC Underwater Pond Filter
Courtyard ponds with no room for a filter box
Ponds with a small spout or stream
Owners who want one unit to run the pond
Oase · Pond Filtration
The owner's insights on the Oase Filtral UVC Underwater Pond Filter
Filtral UVC puts a whole pond system in one box under the water. The pump pulls water through the filter media. A UVC lamp clears the green. The clean water returns through a fountain or a small spout. Only the fountain riser shows above the surface.
It suits small ponds, water bowls and courtyard ponds where there is no room to hide a filter box in the garden. Three sizes cover ponds from 1.5 to 6 m³. The 3000 and 6000 add an aeration nozzle for extra oxygen in summer.
It has limits. Above 6 m³, or with koi, the waste load is too much for a unit this size. A pressure filter with a separate pump is the better choice there.
Tell us the pond volume and what lives in it. We will confirm the size before you order.
Why you'll love the Oase Filtral UVC Underwater Pond Filter
Everything in one unit
Pump, filter, UVC and fountain sit together under the water.
Clears green water
The UVC lamp stops floating algae before they cloud the pond.
Hidden from view
Only the fountain riser shows above the surface.
Feeds a spout or stream
A Y-distributor splits the flow, with separate height control.
Oxygen in summer
The 3000 and 6000 include an aeration nozzle.
Why you should consider an Oase pond filter
Oase is a German company that has engineered pond and water equipment since 1949. In Australia it is supplied by Aquatec Equipment, part of the Oase Group. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Work out which size you need
Step one: find your pond volume
- 1. Measure length, width and average depth, in metres. Average depth, not the deepest hole.
- 2. Multiply the three together. That is your volume in cubic metres.
- 3. One cubic metre is 1,000 litres, so a pond 2 m by 1.5 m by 0.5 m deep is 1.5 m³, or 1,500 litres.
- 4. On an irregular pond, measure the longest and the widest, then round the result down rather than up.
Step two: read the size off the table
| Your volume | No fish | With fish | UVC | Model |
|---|---|---|---|---|
| Up to 1.5 m³ | Filtral UVC 1500 | Up to 0.7 m³ only | 5 W | 1500 |
| Up to 3 m³ | Filtral UVC 3000 | Up to 1.5 m³ | 9 W | 3000 |
| Up to 6 m³ | Filtral UVC 6000 | Up to 3 m³ | 11 W | 6000 |
Fish halve the number, because they add the waste the filter has to handle. Over 6 m³, or any koi, this is the wrong filter: look at a pressure or flow-through filter instead.
Step three: decide what else you want it to do
| If you want | Choose | Note |
|---|---|---|
| A fountain on top | Any model | Three patterns come in the box on a telescopic riser |
| A spout or small stream as well | Any model | The Y-distributor splits the flow, adjusted separately |
| Extra oxygen in summer | 3000 or 6000 | The aeration nozzle is included from the 3000 up |
| Nothing visible at all | Any model | Only the riser shows; the unit sits under the water |
What arrives and what does not
In the box
- ✓The complete underwater unit: pump, filter media and UVC clarifier in one housing
- ✓Telescopic riser with three fountain patterns
- ✓Y-distributor, so part of the flow can feed a spout or stream
- ✓Aeration nozzle on the 3000 and 6000
- ✓10 m power cable
Not included
- ×The aeration nozzle on the 1500. It starts at the 3000.
- ×Hose to run a spout or stream away from the unit.
- ×The outdoor power point.
- ×UVC lamps in time: they are a wear part.
This is the one Oase filter that needs nothing else to run. Drop it in, plug it in, done.
What to measure before you decide
- Pond volume in cubic metres, from step one.
- Whether fish live in it, plus roughly how many.
- Water depth where the unit will sit, since the riser is telescopic but not unlimited.
- Distance to an outdoor power point, because the cable is 10 m.
- Whether the pond gets full sun, which drives how hard the UVC has to work.
Work through those three steps and you have your model. If you would rather have it checked, tell us the volume and what lives in the pond. We will confirm the size before you order.
Talk it through before you order
Tell us the pond volume and the fish. We will match the model. If your pond needs a larger filter, we will say so.
Call todaySee it in action
- Filmed by Oase
- Nothing loads until you press play
Filtral UVC product guide
A filter, UV clarifier and fountain in one unit for small ponds. Oase UK explains how it works.
Oase Filtral UVC specifications
| Pond size (no fish / fish) | UVC | Power | Max flow | Max head | Aerator | Weight | SKU | |
|---|---|---|---|---|---|---|---|---|
| Filtral UVC 1500 | 1.5 / 0.7 m³ | 5 W | 18 W | 750 l/h | 0.9 m | Not included | 3.05 kg | 73492 |
| Filtral UVC 3000 | 3 / 1.5 m³ | 9 W | 36 W | 1,500 l/h | 1.8 m | Included | 3.91 kg | 73493 |

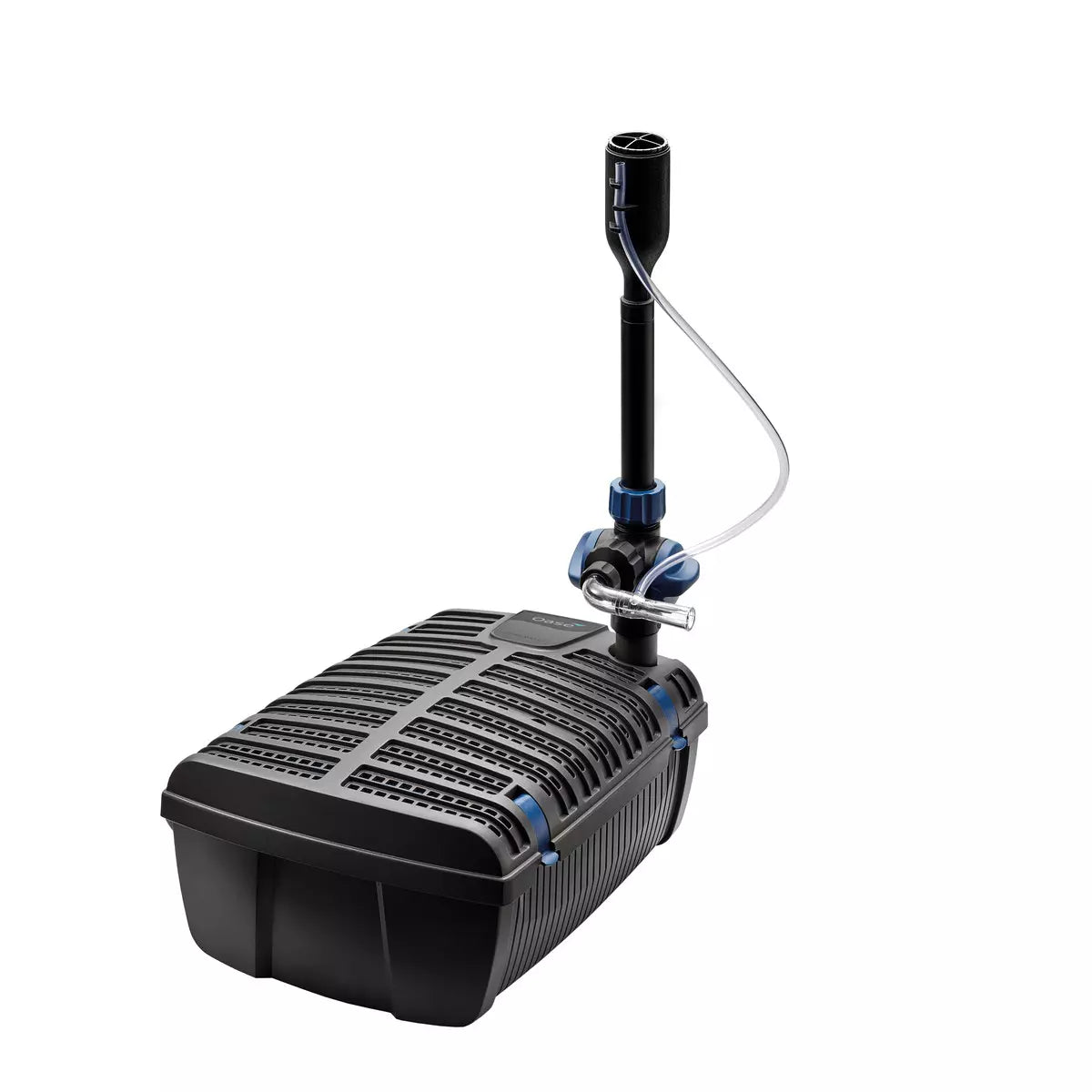

| Filtral UVC 6000 | 6 / 3 m³ | 11 W | 52 W | 2,500 l/h | 2.1 m | Included | 5.26 kg | 73494 |
Frequently asked questions
What does a Filtral UVC do?
It pumps, filters and clears the water in one unit that sits in the pond. Filter media catch the dirt. The UVC lamp stops the floating algae that turn water green. The same pump drives a fountain on top.
Which size do I need?
Match it to the pond volume. The model number is the largest pond in litres with no fish. With fish, halve it. Above 6 m³, choose a pressure or flow-through filter instead.
Can it run a stream or spout?
Yes. A Y-distributor sends part of the flow to a small spout or stream. Flow and fountain height adjust separately.
Is it suitable for koi?
No. Koi produce far more waste than a unit this size can handle. For koi, look at a BioTec flow-through filter or a ProfiClear drum filter.
How do I clean it?
Lift it out of the pond, open the housing and rinse the filter sponges. Use pond water rather than tap water so the useful bacteria survive.
What does the warranty cover?
Oase give 2 years. The UVC lamp is a wear part and is replaced separately. You call My Acre and we handle the claim with Aquatec.
