ClayTech Rainwater Pressure Pump with AcquaSaver
An AcquaSaver valve switches to mains water when the tank runs low.
The owner's insights on the ClayTech Rainwater Pressure Pump with AcquaSaver
These ClayTech kits pair a pump with an AcquaSaver valve. The valve gives priority to rainwater from your tank and switches to mains water when the tank runs low. It works by water pressure, with no electronics, so it needs no power to change over.

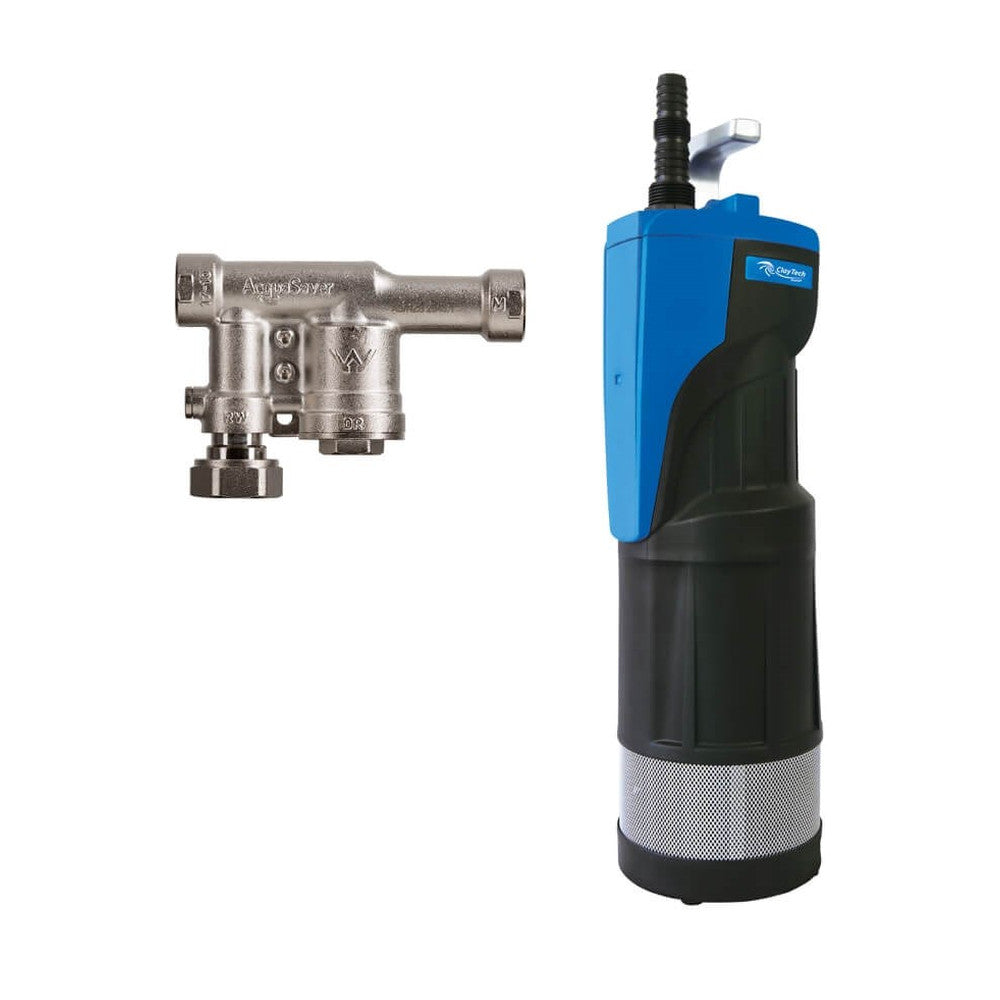

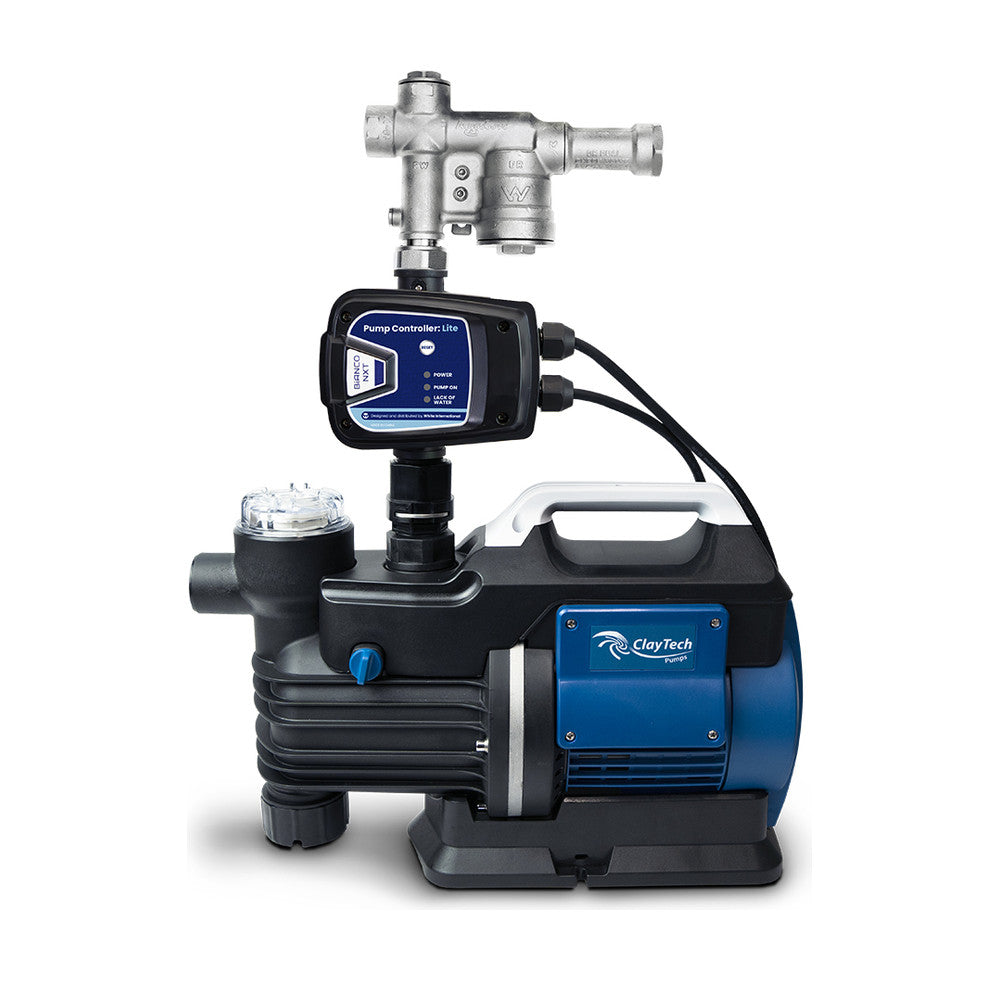

Choose the pump by where it lives. The C3X and C5X are self-priming jet pumps that stand beside the tank. ClayTech say their water-cooled motors run quietly and can sit in a tight space or under cover. The C6X and Divertron C6 are submersibles that sit inside the tank.

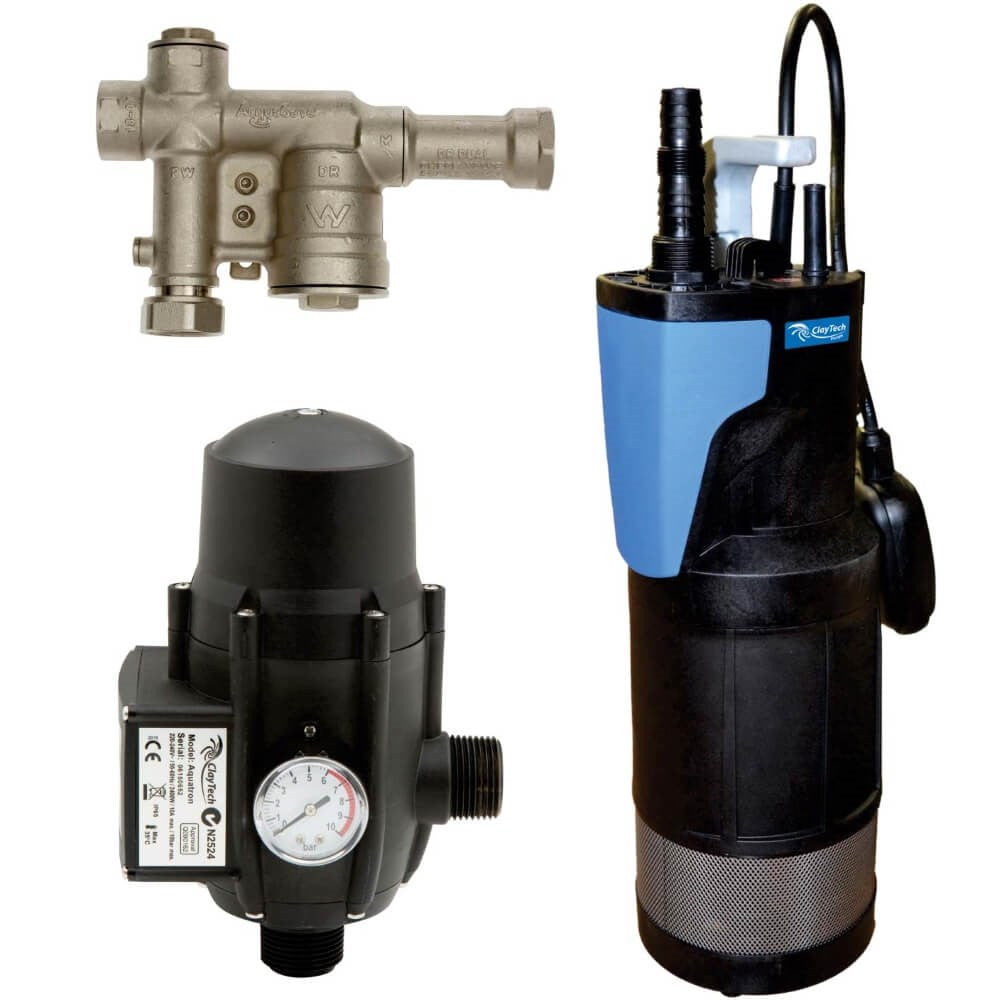

The Bluediver C30 is different. White International describe it as a multi-purpose transfer pump with a float switch, so talk to us before you choose it for a house supply.
Plumbing connections are work for a licensed plumber. These kits suit clean water, so your tank still needs an inlet strainer and a first flush device.
Why you'll love the ClayTech Rainwater Pressure Pump with AcquaSaver
Rainwater first
The AcquaSaver uses your tank water first and switches to mains when the tank runs low.
No power for the valve
The AcquaSaver has no electronics and uses no electricity. ClayTech say it needs no regular maintenance.
Brass body, any position
The AcquaSaver has a solid brass body and dual check valves. You can mount it in any position.
Quiet jet pumps
Your C3X or C5X has a water-cooled motor, which ClayTech say runs quietly.
Pumps inside the tank
The C6X and Divertron C6 sit inside your tank, so the installation stays neat and needs no weather cover.
Match the pump to your taps
Tap ratings run from 3 on the C3X to 6 on the C6X, so you can match the pump to your house.
Why you should consider a ClayTech rainwater pump
ClayTech pumps and the AcquaSaver valve are distributed in Australia by White International of Milperra, NSW. White International list a 36 month warranty on the C3X and C5X. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you deal with us, not the maker.
Talk it through before you order
Tell us where your tank sits and the taps you want on rainwater. We will match the pump.
Call todayWork out which pump you need
Step one: compare the five models
| Model | Where it sits | Flow | Max head | Taps | Power |
|---|---|---|---|---|---|
| C3X | Beside the tank | 50 L/min | 39 m | 3 | 400 W |
| C5X | Beside the tank | 63 L/min | 43 m | 5 | 750 W |
| C6X | Inside the tank | Up to 100 L/min | 35 m | 6 | 900 W |
| Divertron C6 | Inside the tank | 95 L/min | 36 m | Not listed | 650 W |
| Bluediver C30 | Inside the tank | 95 L/min | 30 m | Not listed | 650 W |
Figures are from the White International listings.
Step two: check the pump against your tank and house
- 1. Decide where the pump will live: beside the tank (C3X, C5X) or inside it (C6X, Divertron C6, Bluediver C30).
- 2. Count the toilets, laundry and garden taps you want on tank water, then how many run at once. Compare that with the tap rating and listed flow.
- 3. Check the valve. The 3/4 inch AcquaSaver is listed to 50 L/min. Our rule of thumb: size against the lower of the pump rating and the valve rating.
- 4. Measure from the water level in the tank up to your highest tap. Compare that height with the listed head. The C3X and C5X also list an 8 m maximum suction lift.
What arrives and what does not
In the box
- ✓A ClayTech pump, the model you choose
- ✓An AcquaSaver changeover valve, 3/4 inch (1 inch on the Bluediver C30)
Not included
- ×A suction hose for the C3X or C5X. ClayTech's 1 m, 25 mm suction hose kit is listed as a separate item.
- ×Pipework, fittings and the licensed plumber.
- ×A tank inlet strainer and first flush device.
- ×Any water filter.
The listings do not itemise each kit, so we confirm the contents with you when you order.
What to measure before you decide
- Where the pump will sit, beside the tank or inside it.
- How many toilets, laundry and garden taps will run on tank water.
- The height from the tank water level to your highest tap.
- The distance from the tank to the pump, for the C3X and C5X.
- Where the valve will sit and whether the plumber can reach it.
If you would rather have it checked, send us your tank position and the number of taps.
ClayTech Rainwater Pressure Pump with AcquaSaver specifications
| C3X | C5X | C6X | Divertron C6 | Bluediver C30 | |
|---|---|---|---|---|---|
| SKU | CLA-CMS-C3X-A2 | CLA-CMS-C5X-A2 | CLA-CMS-C6XA2 | CLA-CMS-C6A2 | CLA-BLUEDIVER-C30A1 |
| Pump type | Self-priming jet pump | Self-priming jet pump | Submersible multistage | Submersible | Submersible transfer pump with float switch |
| Power | 400 W | 750 W | 900 W | 650 W | 650 W |
| Maximum flow | 50 L/min | 63 L/min | 100 L/min | 95 L/min | 95 L/min |
| Maximum head | 39 m | 43 m | 35 m | 36 m | 30 m |
| Taps | 3 | 5 | 6 | Not listed | Not listed |
| Maximum suction lift | 8 m | 8 m | Not listed | Not listed | Not listed |
| Connections | 1 inch inlet, 1 inch outlet | 1 inch inlet, 1 inch outlet | 1 inch outlet | 1 inch outlet | 1 1/4 inch outlet |
| Control | Auto controller with loss-of-prime protection and an LED display | Auto controller with loss-of-prime protection and an LED display | Float switch against dry running, iSensor pressure and flow control, 2.5 bar cut-in | Electronic on and off with loss-of-prime protection and a daily 24 hour restart | Float switch starts and stops the pump by water level |
| Pump approval | Listed as approved for drinking water | None listed for the pump | Listed as approved for drinking water | None listed for the pump | None listed for the pump |
| Warranty | 36 months | 36 months | Not stated for the pump | Not stated | Not stated |
| AcquaSaver valve | 3/4 inch | 3/4 inch | 3/4 inch | 3/4 inch | 1 inch |
| 3/4 inch AcquaSaver ratings | Mains pressure to 500 kPa, pump pressure to 600 kPa, flow up to 50 L/min. Solid brass body, dual check valves, hydraulic changeover with no electronics. The 1 inch valve's ratings are not listed. | ||||
| AcquaSaver warranty | 2 years, listed for the valve on its own | ||||
| Valve approval | Listed by White International as WaterMark approved | ||||
| Suitable for | Clean water | ||||
| Delivery | Flat rate freight by state, added at checkout | ||||
Frequently asked questions
What does the AcquaSaver do on a ClayTech rainwater pump kit?
The AcquaSaver gives priority to your rainwater and switches to mains water when the tank runs low. It works by water pressure with no electronics, then returns to rainwater once the tank refills or power is restored.
Which ClayTech rainwater pump should I choose?
Choose by where the pump sits and how many taps run at once. The C3X and C5X are rated for 3 and 5 taps beside the tank. The C6X is rated for 6 taps inside it.
Can the C3X or C5X sit in a tight spot or under cover?
ClayTech say the water-cooled motor needs no airflow for cooling, so the pump can sit in a tight space or be fully covered against the weather. Check the position with your plumber.
How much water can the AcquaSaver pass?
White International list the 3/4 inch AcquaSaver at up to 50 L/min, with mains pressure to 500 kPa and pump pressure to 600 kPa. The 1 inch valve on the Bluediver C30 has no listed ratings.
Do these kits need a licensed plumber?
We recommend a licensed plumber makes the connections to your mains and tank. Your plumber can also advise on backflow protection, which an underground tank or your water authority may require.
What warranty do the ClayTech kits carry?
White International list 36 months on the C3X and C5X. The AcquaSaver valve alone is listed at 2 years. The other pumps state no term. You call My Acre and we handle any claim.
Is a suction hose included with the C3X or C5X?
The listings do not itemise a hose. White International list a 1 m, 25 mm ClayTech suction hose kit as a separate item, so plan on buying one unless your plumber supplies the pipework.
What is the Bluediver C30?
White International describe it as a multi-purpose transfer pump with a float switch that starts and stops it by water level, supplied with a 1 inch AcquaSaver. Ask us before choosing it for a house supply.
Match a ClayTech pump to your tank
Your price is beaten against any genuine like-for-like offer. We confirm delivery with you when you order. If anything goes wrong, we handle the warranty claim for you.
