Otterbine All-in-One Small Pond Aerator
A pond that needs movement more than height
Owners who want to change the pattern with the season
Properties where the pond is seen from the house at night
Otterbine · Dam and Pond Fountains
The owner's insights on the Otterbine All-in-One Small Pond Aerator
This is the small end of the Otterbine range: one half-horsepower unit that floats in a dam or large pond and does the work of an aerator and a fountain together.
Every nozzle comes in the box. Gemini is fitted from new for a plume. High Volume gives a low boil that moves the most water. Phoenix and Rocket throw height. The horizontal mixer drops the spray altogether and pushes water about 35 metres across the surface, which suits a pond where you want circulation without a display.
It suits water up to about 3,000 square metres and at least 41 cm deep. Beyond that, a 1 to 5 HP aerating fountain is the better answer. Ask us and we will say which side of the line you are on.
Lighting is worth deciding now. White or RGB LED sets mount on the unit, so fitting them later means handling the fountain again. Timer and plug are not included: your electrician prepares the shore power.
Why you'll love the Otterbine All-in-One Small Pond Aerator
Aerator and fountain in one
A single 1/2 HP unit for small dams and ponds.
Every pattern included
Gemini, High Volume, Phoenix, Rocket plus the mixer.
Circulation without spray
The mixer moves water about 35 m across the surface.
Night display
White or RGB LED lighting, with a remote on RGB.
3-year warranty
All inclusive, handled by us through Aquatec.
Why you should consider Otterbine
Otterbine builds floating aerators and fountains in the United States. In Australia they are supplied by Aquatec Equipment, the exclusive distributor for Australia and New Zealand. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Work out what you need
Step one: is your water the right size for it?
| Check | This unit suits | If not |
|---|---|---|
| Surface area | Up to about 3,000 m² | Step up to a 1 to 5 HP aerating fountain |
| Depth where it will float | 41 cm or more | It cannot be used; the intake needs water under it |
| Power | 230 V single phase, 2.6 to 2.8 A | An electrician runs a circuit to the water |
Measure the water at its widest: length times width in metres.
Step two: which pattern to fit, using the numbers
| Pattern | Height | Spread | Water moved | Oxygen | Best for |
|---|---|---|---|---|---|
| Gemini | 1.2 m | 1.8 m | 115 m³/hr | 1.0 kg/HP/hr | The best all-rounder, fitted from new |
| High Volume | 1.0 m | 1.4 m | 99 m³/hr | 0.91 kg/HP/hr | Water quality first, a low boil |
| Phoenix | 2.8 m upper | 3 m lower | 44 m³/hr | 0.36 kg/HP/hr | A two-tier display |

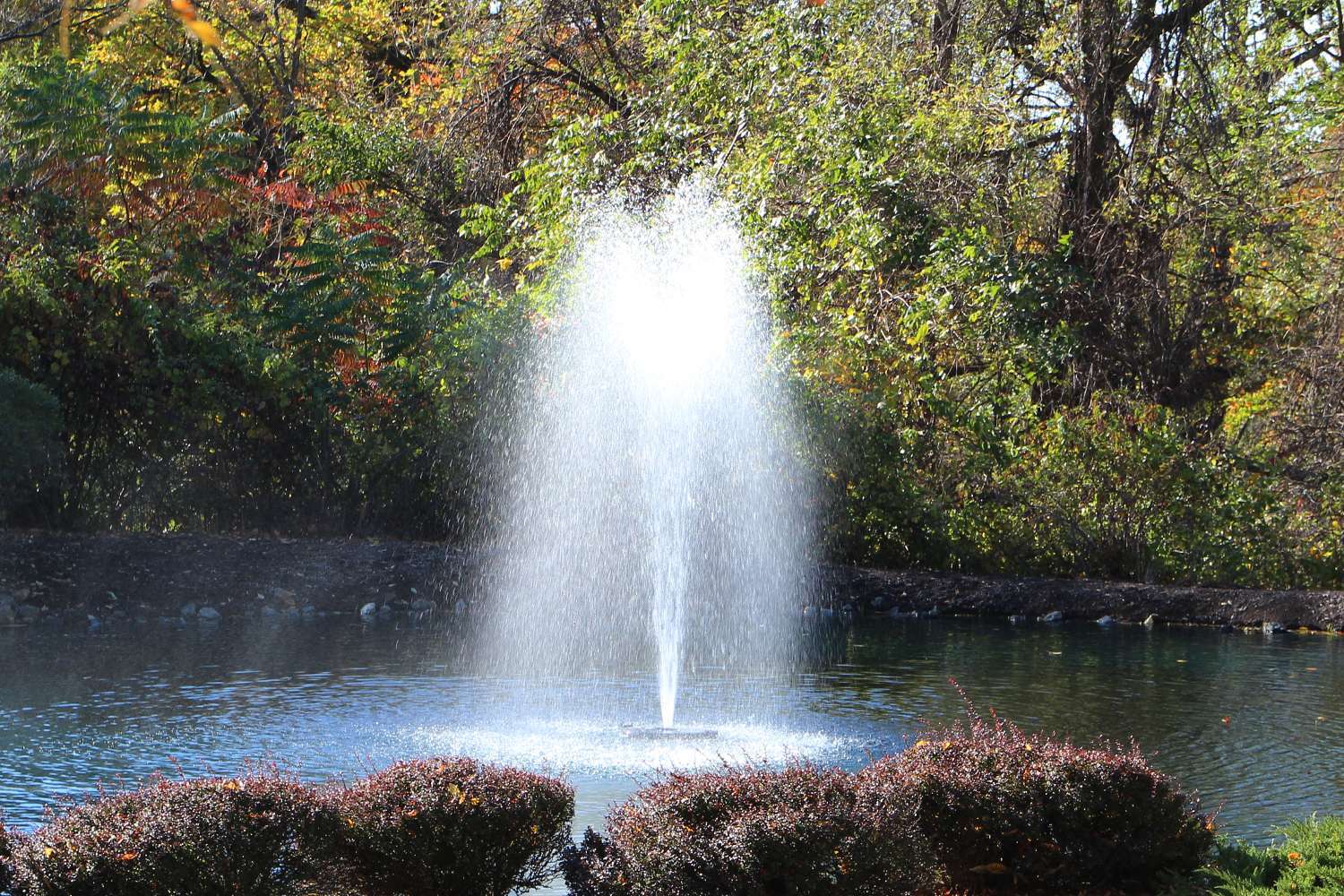

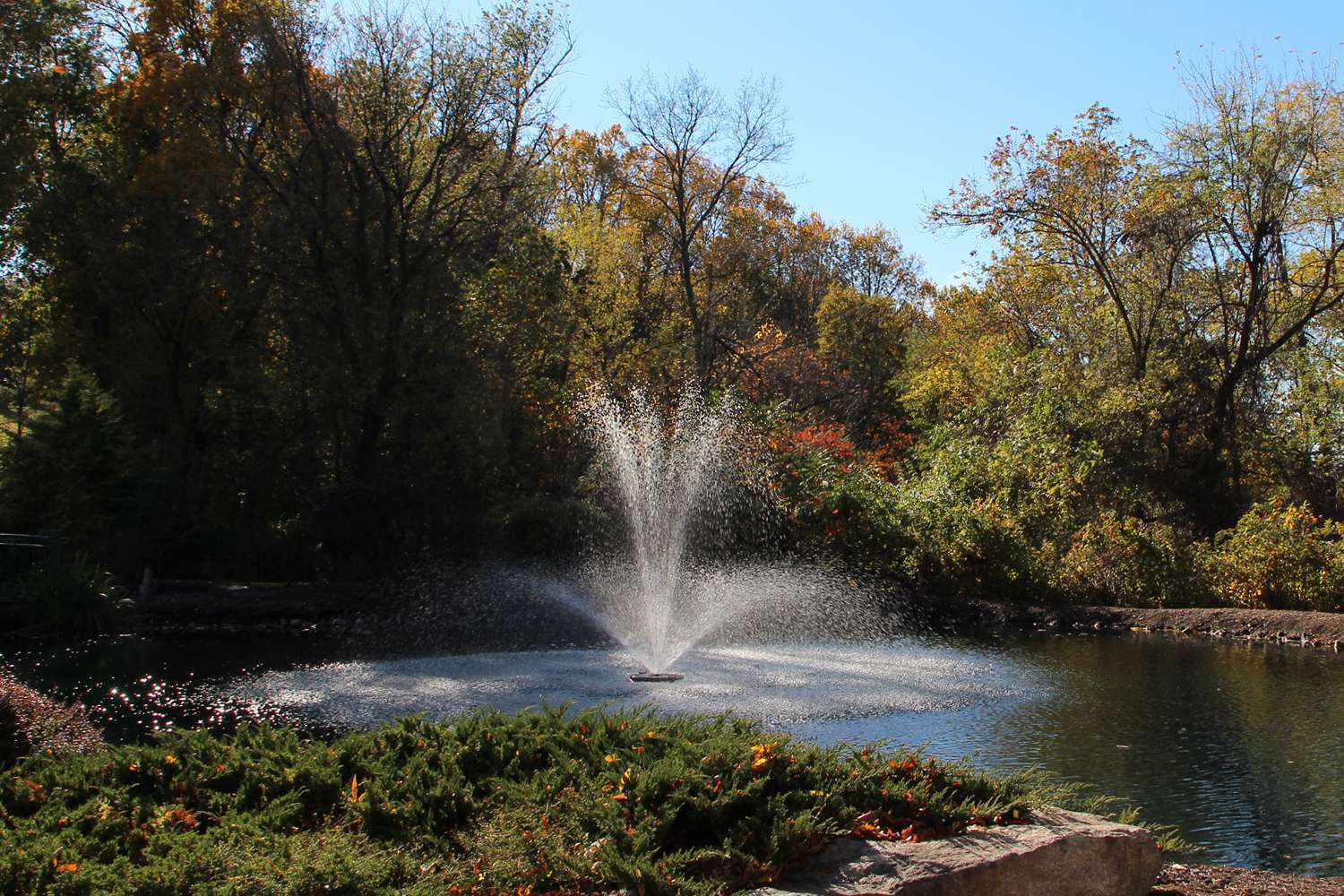

| Rocket | 3.0 m | 40 cm | 41 m³/hr | 0.36 kg/HP/hr | Height, seen from a distance |
| Horizontal Mixer | None | Moves water about 35 m | n/a | n/a | Circulation with nothing showing |
Every nozzle listed here is in the box. You can change your mind any weekend without buying anything.
Step three: cable length
- 1. Walk from where the unit will float to where the power will terminate on shore.
- 2. Add a few metres for the run up the bank, not a straight line across the water.
- 3. Choose 25 m or 30 m. Other lengths are quoted to order, so ask before you settle for a stretch.
What arrives and what does not
In the box
- ✓The 1/2 HP motor and float
- ✓Debris screen
- ✓Every nozzle in the range: Gemini, High Volume, Phoenix, Rocket, plus the horizontal mixer
- ✓Gemini fitted from new
- ✓Cable in the length you chose, with a quick disconnect
- ✓Lighting, if you chose the white or RGB option
Not included
- ×A timer. Otterbine state it is not included.
- ×A plug. The shore end is wired by your electrician, not plugged in.
- ×RCD protection and the outdoor circuit itself.
- ×Anchors or mooring lines for your site.
Some assembly is needed out of the box. Every pattern is included, so the nozzle choice costs nothing to change later.
What to measure before you decide
- Surface area of the water, length times width in metres.
- Depth where the unit will sit, which must be at least 41 cm.
- Distance from that spot to the shore power point, in metres.
- Whether you want it lit at night, since the light set mounts on the unit. Fitting it later means pulling the unit out again.
- Whether you want a display at all. The mixer moves water with nothing visible above the surface.
The tables above are the whole decision. If you would rather have it checked, send us the surface area, the depth and the cable run. We will confirm the fit before you order.
What the installation involves
- A licensed electrician prepares the power connection with RCD protection, plus a timer if you want one. The timer and plug are not supplied with the unit.
- Power is trenched to the water in conduit, then joined at the cable quick disconnect.
- Spray patterns anchor or moor at two points. The horizontal mixer is held at three.
Some assembly is needed out of the box. Install cost depends on the site, so we talk it through with you before you order.
Talk it through before you order
Tell us the pond size, the depth and the run to power. We will confirm the fit and the cable length before you order.
Call todaySee it in action
- Filmed by Otterbine
- Nothing loads until you press play
One unit, five ways to run it
Four fountain patterns and a horizontal circulator in the one 1/2 HP unit. Otterbine shows each setting.
The All-in-One after dark
The same small pond unit with lights fitted. See how the patterns look at night before you choose a lighting option.
Otterbine All-in-One specifications
| Pattern | Spray height (m) | Spread (m) | Pumping rate (m³/hr) | Oxygen transfer (kg/HP/hr) | Amps at 230 V |
|---|---|---|---|---|---|
| Gemini | 1.2 | 1.8 | 115 | 1 | 2.8 |
| High Volume | 1 | 1.4 | 99 | .91 | 2.8 |
| Phoenix | Upper: 2.8 Lower: 1.0 | Upper: 30cm Lower: 3 | 44 | .36 | 2.6 |
| Rocket | 3 | 40cm | 41 | .36 | 2.6 |
| Horizontal Mixer | n/a | n/a | n/a | n/a | 2.8 |
Frequently asked questions
How big a pond does it suit?
Otterbine size it for ponds up to about 3,000 square metres. The water needs to be at least 41 cm deep. For a larger dam, step up to a 1 to 5 HP aerating fountain.
Which patterns are included?
All of them. Gemini, High Volume, Phoenix and Rocket nozzles come in the box, plus the horizontal mixer. Gemini is fitted from new. Changing pattern is a hand job at the unit.
What does the mixer do?
It pushes water sideways instead of spraying it, moving water roughly 35 metres across the surface. Use it where you want circulation without a visible fountain.
What is not included?
The timer and the plug. A licensed electrician prepares the power connection with RCD protection and a timer if you want one, then trenches the cable in conduit to the water.
Can I add lighting later?
Yes, though it costs less to order it with the unit. The light set mounts on the fountain, so a later fit means handling the unit again.
What maintenance does it need?
None scheduled. Clean the intake screen by hand or with a wire brush if it clogs.
Does it run through winter?
The Gemini, High Volume and mixer configurations can stay in the water. Phoenix and Rocket should come out before freezing, which matters in alpine areas rather than most of Australia.
What does the warranty cover?
Three years, all inclusive. You call My Acre and we handle the claim with Aquatec.
