Aquascape ASA Dam Aerator, 1/4 hp
Stock water that needs to stay drinkable
Large ornamental ponds beyond a pond pump
Recreation ponds needing extra circulation
Aquascape · Dam and Lake Aeration
The owner's insights on the ASA 1/4 hp Dam Aerator
If your dam smells in February, this is the fix. The smell is anaerobic bacteria working in the bottom layer where no oxygen reaches. No amount of surface treatment will change that. Only moving the bottom water will.
The distinction that matters is bottom aeration against a surface fountain. A fountain looks impressive and does almost nothing for water quality, because it only ever touches the top layer that already has oxygen in it. A diffuser on the floor turns the whole column over.
The configurations differ in diffuser count and whether the compressor comes in a cabinet. The cabinet is worth having if the compressor will sit exposed; it is lockable, it damps the noise, then it keeps weather off a machine that runs continuously.
Two diffusers spread across a dam do far more than one diffuser working harder. Circulation is about coverage, not about making one spot bubble impressively.

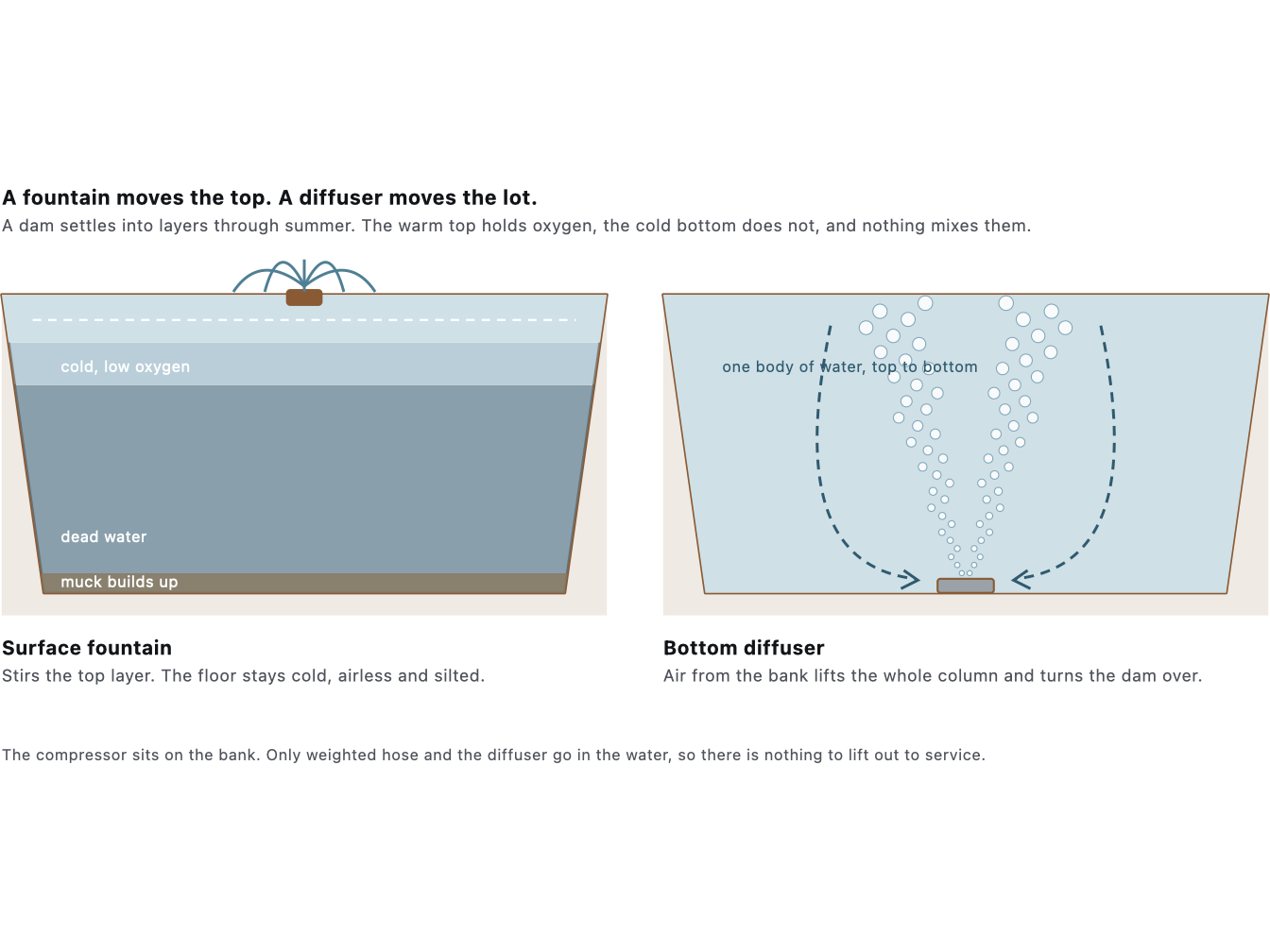

Why bottom aeration, not a surface fountain
Still water separates into layers. Only a diffuser sitting on the floor can turn the whole column over, which is what actually fixes a dam.
- 1Still water separates into layersWarm oxygenated water sits on top. Cold, oxygen-starved water sits below it. Nothing mixes, so the bottom goes anaerobic.
- 2That bottom layer is the problemIt is where the smell comes from, where nutrients build up, and why the whole dam blooms green when the weather turns.
- 3Diffusers sit on the floorA compressor on the bank pushes air down a weighted hose to diffusers resting on the bottom.
- 4Rising bubbles turn the column overThe bubbles drag cold bottom water up to the surface where it picks up oxygen. A surface fountain cannot do this, because it only ever touches the top.
Why you'll love the ASA 1/4 hp Dam Aerator
It fixes the actual cause
The anaerobic bottom layer is where smell and nutrient load come from. This is the only thing that reaches it.
Coverage beats intensity
Two diffusers spread across a dam circulate far better than one working harder.
Runs on air, not water
The compressor sits on the bank. Nothing electrical goes in the water.
Cabinet options
Lockable, weatherproof, plus it damps the mechanical hum considerably.
Better for stock and fish
Aerated water holds more dissolved oxygen and loses the anaerobic smell.
Cheap to service
A rebuild kit every 18 to 24 months. We stock them.
Why you should consider an Aquascape water feature
Aquascape originated the pondless format and holds the Pondless® trademark. The Australian arm operates from Queensland with a certified installer network behind it. Order through My Acre and we will beat any genuine like-for-like price you find elsewhere. If a warranty question ever comes up, you are calling us directly, not an overseas call centre.
Tell us the space before you order
Send us the dimensions and a photo. We will size it properly, tell you what the rock and excavation will really cost, and say so if a different kit suits you better.
Call todayASA 1/4 hp Dam Aerator specifications
| Type | Bottom-diffused dam aeration, mains powered |
|---|---|

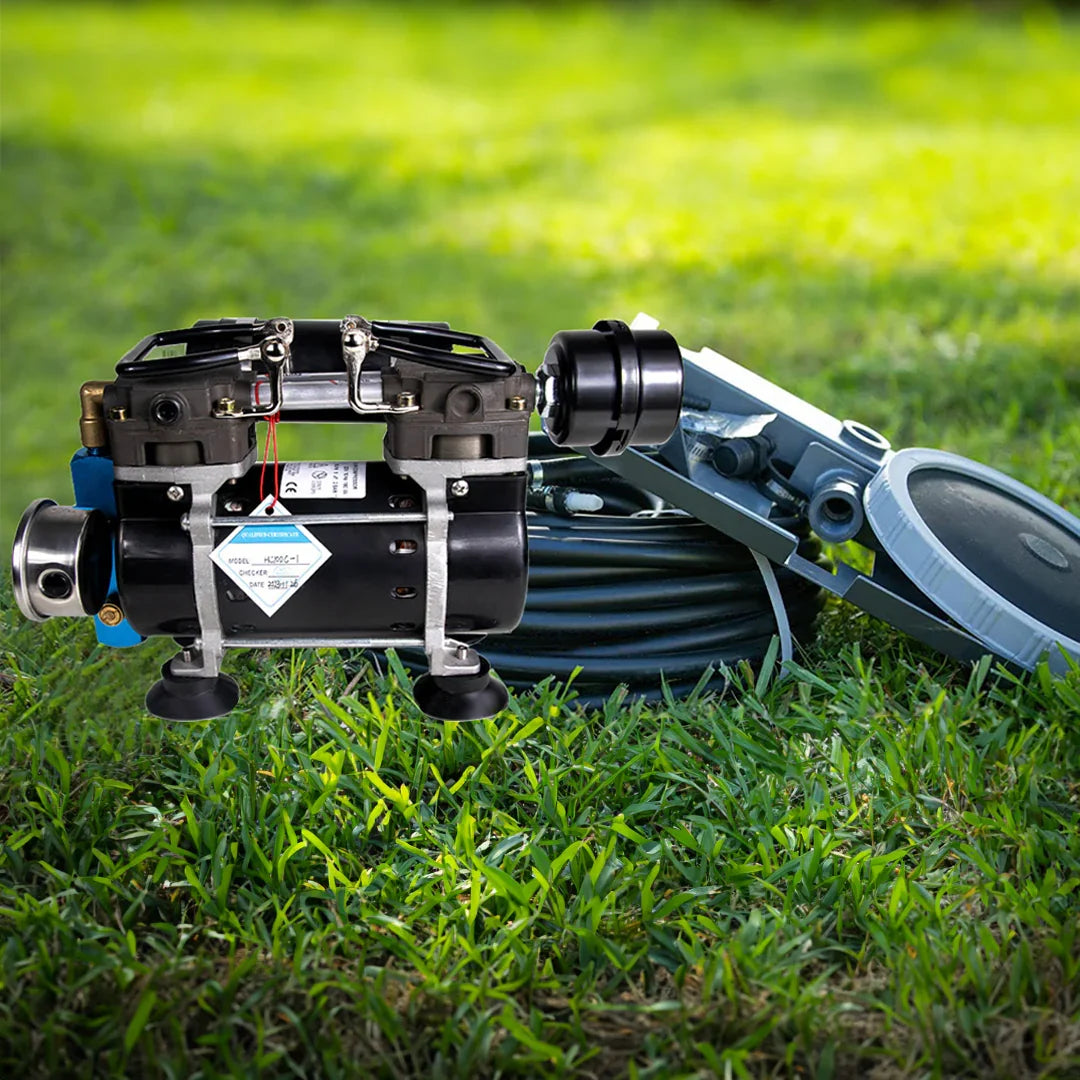

| Compressor | 1/4 hp rocking piston, 230V |
| Manifold | Two-outlet with individual flow control |
| Diffusers | One or two single diffusers on stainless steel bases, by configuration |
| Hose | 30m weighted hose per diffuser |

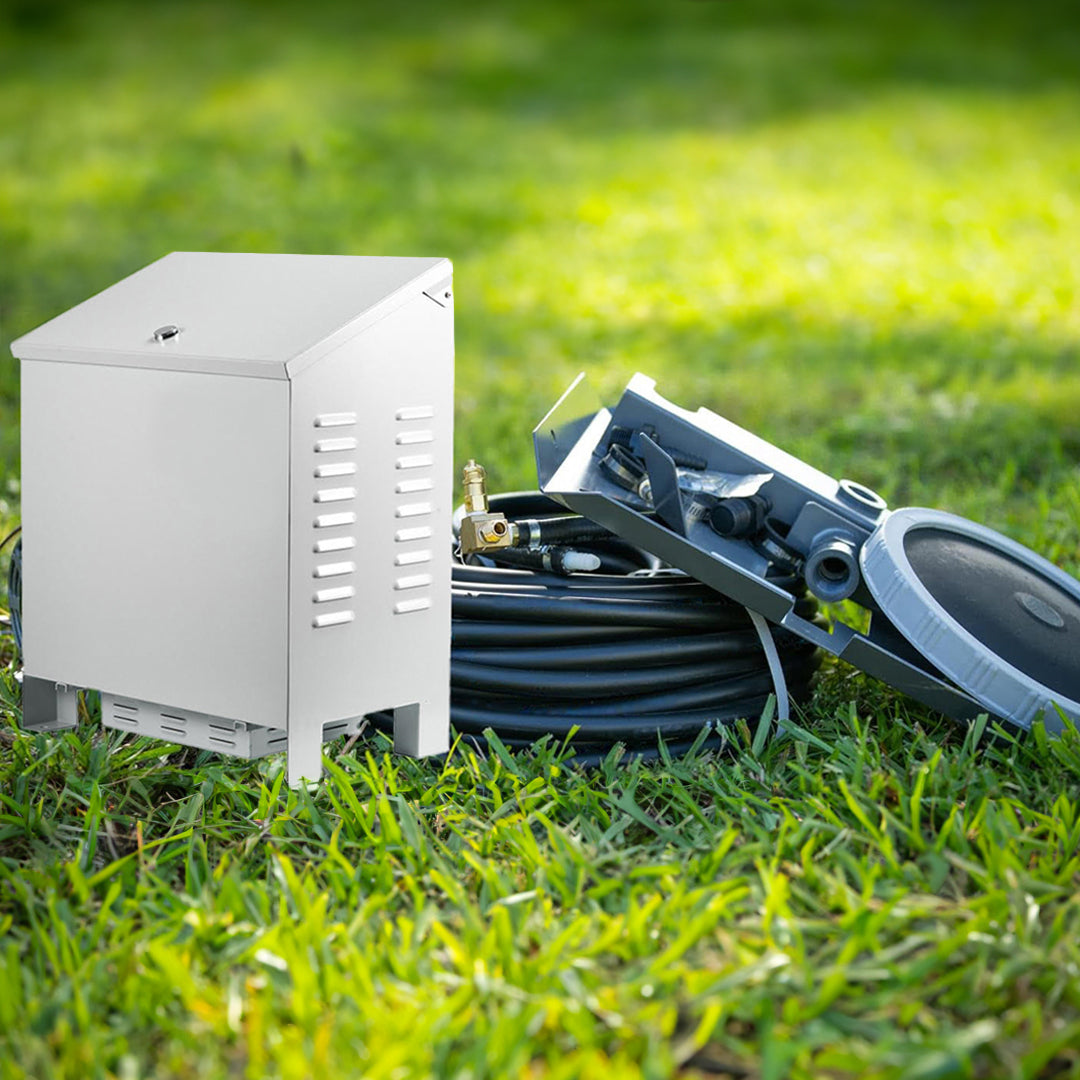

| Cabinet | Lockable weatherproof cabinet on cabinet configurations |
| Placement | Compressor on the bank, diffusers on the floor |
| Servicing | Rebuild kit every 18 to 24 months |
| Power | Mains 230V at the bank |
| SKU | HC100A-1Set, HC100A-CAB, HC100A-2Set, HC100A-CAB-1, HC100A-CAB-2 |
What is included and what you supply
The compressor, manifold, hose and diffusers for the configuration you choose.
In the box:
- 1/4 hp rocking piston compressor
- Two-outlet manifold with individual flow control
- Diffusers on stainless steel bases, to the configuration selected
- 30m weighted hose per diffuser
- Lockable cabinet on cabinet configurations
- Installation documentation
You supply:
- A level pad for the compressor cabinet
- Mains power at the bank, or panels and batteries for the solar unit
- A way to place the diffusers on the floor, usually a small boat
- Trenching if you want the airline buried
Frequently asked questions
How do I size it?
By surface area and depth together, not area alone. A deep dam stratifies harder than a shallow one of the same size. Call us with both numbers before you order, because getting this wrong is expensive.
Why not a floating fountain instead?
A fountain only moves the top layer, which already has oxygen in it. The problem is the anaerobic layer on the bottom. Only a diffuser sitting on the floor will turn that over. Fountains are decoration; this is treatment.
Is it safe for stock and fish?
Yes, and it usually improves both conditions. Aerated water holds more dissolved oxygen, which fish need. Stock water that is turning over does not develop the anaerobic smell that puts animals off drinking.
Do I need the cabinet version?
If the compressor will sit exposed, yes. It is lockable, weatherproof and noticeably quieter. If it is going in a shed you already have, save the money.
One diffuser or two?
Two, if the dam is big enough to warrant this size at all. Coverage matters more than intensity, so two diffusers spread apart beat one working harder.
How loud is the compressor?
A rocking piston compressor makes a steady mechanical hum. The cabinet versions damp it considerably. Site it away from the house if you have the choice.
What servicing does it need?
A rebuild kit every 18 to 24 months keeps a rocking piston compressor at full output. They are inexpensive and we stock them. Skipping them is how compressors die early.
Does it run continuously?
Generally yes, though many owners run them on a timer through winter when biological demand is lower. Continuous running through summer is where the benefit is.
Compare with similar
Aquascape ASA Dam Aerator, 1/4 hp
The smaller mains system, one or two diffusers, with or without a cabinet.
Best for a farm dam or a large ornamental pond that goes green in summer
From $1,199
Aquascape ASA Dam & Lake Aerator, 3/4 hp
The larger mains system, up to four double diffusers on one compressor.
Best for large dams and small lakes where one diffuser will not cover it
From $1,799
Aquascape ASA Solar Dam Aerator, 1/2 hp
A 24V solar system for dams with no mains power anywhere near them.
Best for remote dams, which is most of them
From $2,799
Get the ASA 1/4 hp Dam Aerator right first time
Your price is beaten against any genuine like-for-like offer. We can organise a certified builder, work with your own landscaper, or set you up to do it yourself.
Speak to the team
