EcoSmart Linear 130 Fire Pit Kit
Heats up to 60m², 8–13hrs of warmth.
EcoSmart Fire · Fire Pit Kits
The owner's insights on the Linear 130

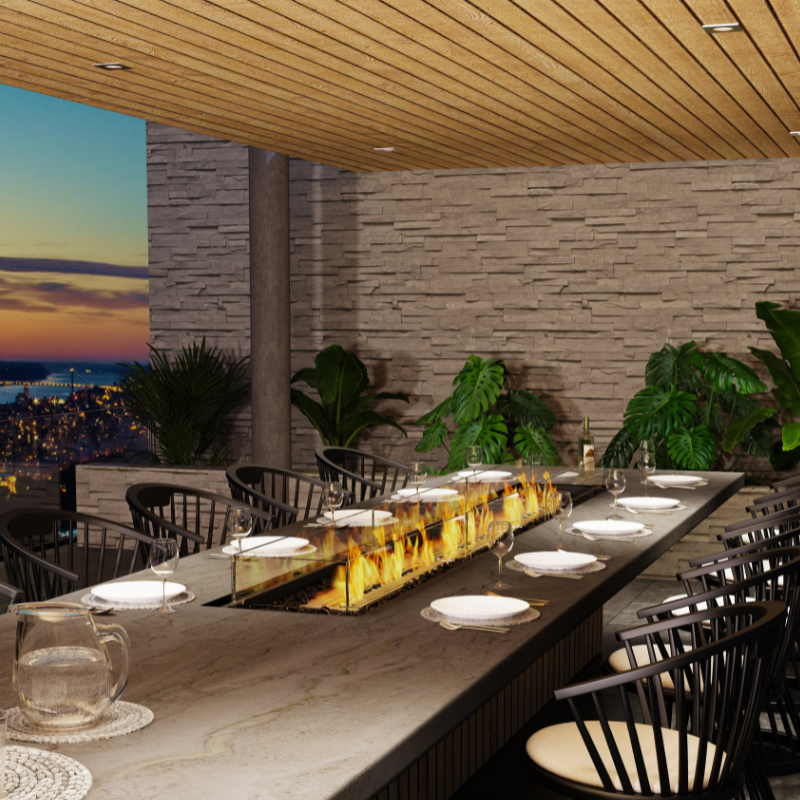

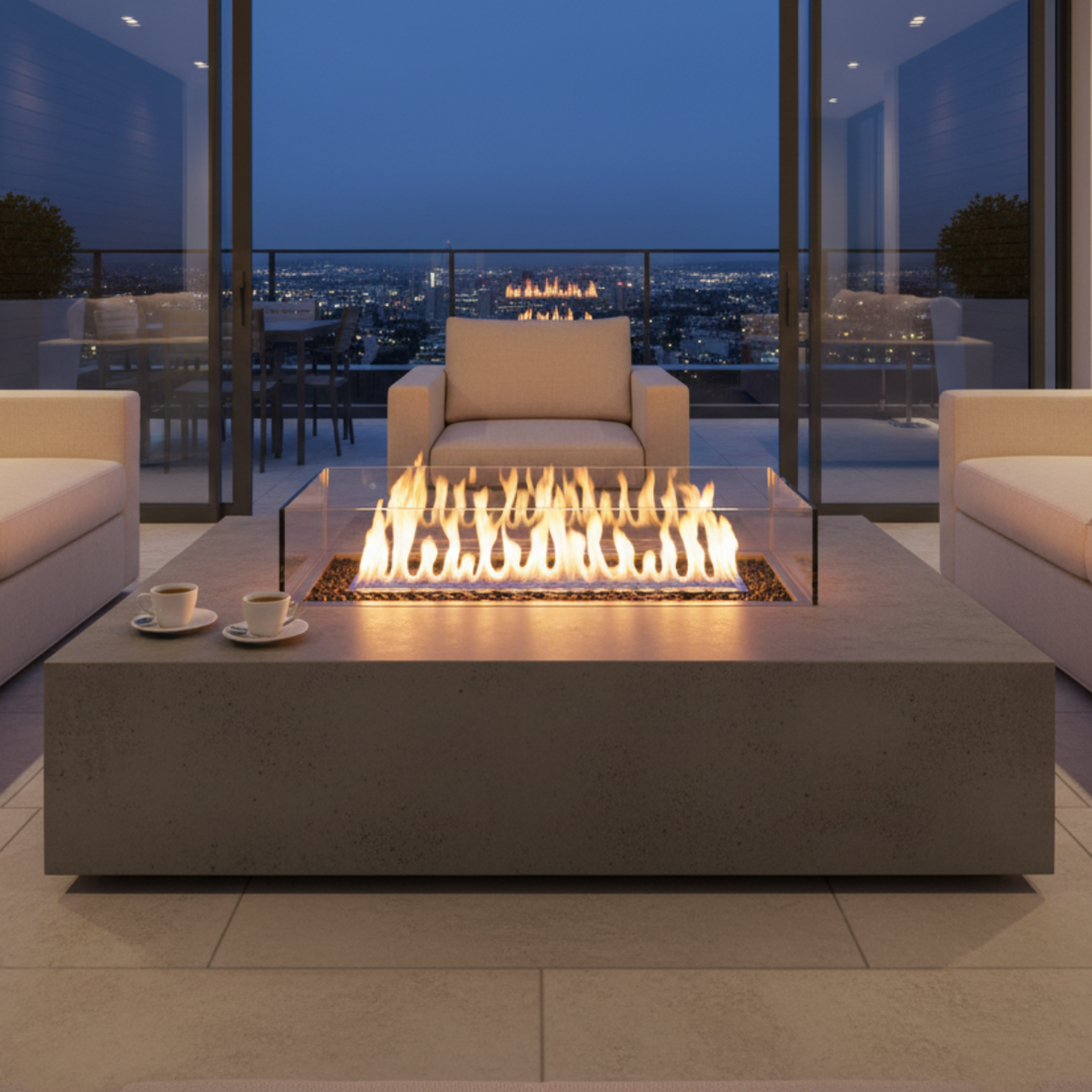

The Linear 130 is the largest bioethanol drop-in kit EcoSmart makes: three XL900 burners in a single 3,375 mm housing. This is the one we spec for resort pool decks, restaurant terraces and the rare luxury home entertaining bench where anything smaller would disappear.
Three burners lift output to 13.2 kW from a 26.9 L tank, warming up to 180 m² outdoors, enough for a single kit to heat a whole pool deck. It still drops into a prepared aperture with nothing to wire and nothing to plumb, and no gas licence or council paperwork to chase.
Most residential jobs don't need this much kit. If the Linear 130 would dominate the room, the single-burner Linear 65 gives you the same clean bioethanol flame and roughly a third of the heat, at a third of the price. This is a scale decision as much as a budget one.
Worth being upfront about: this is a burner kit, not a finished fireplace. The concrete or masonry surround is your build or your landscaper's, and the bioethanol fuel is sold separately.
Why you'll love the Linear 130

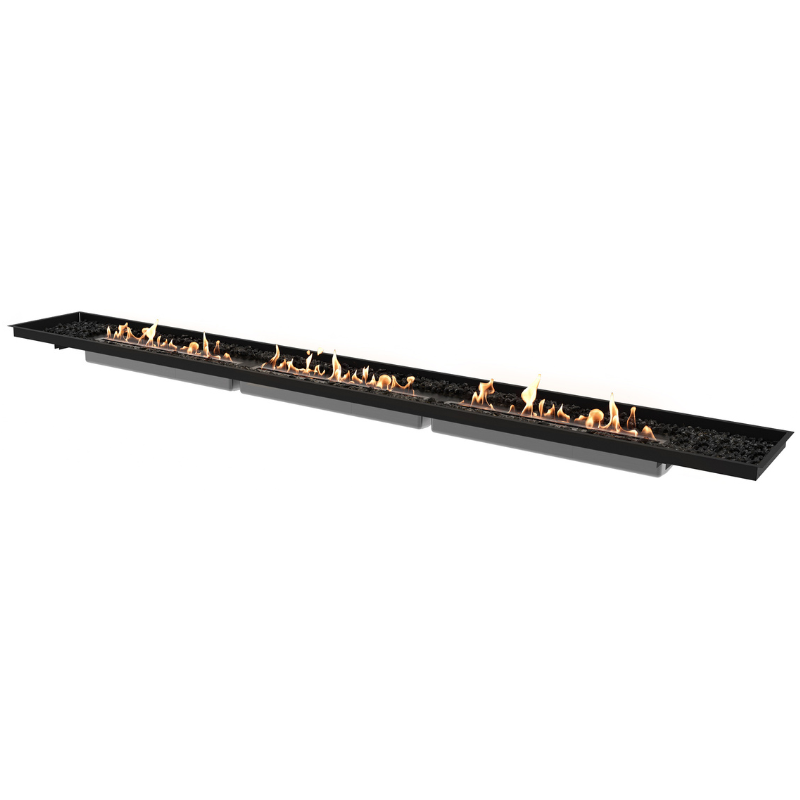

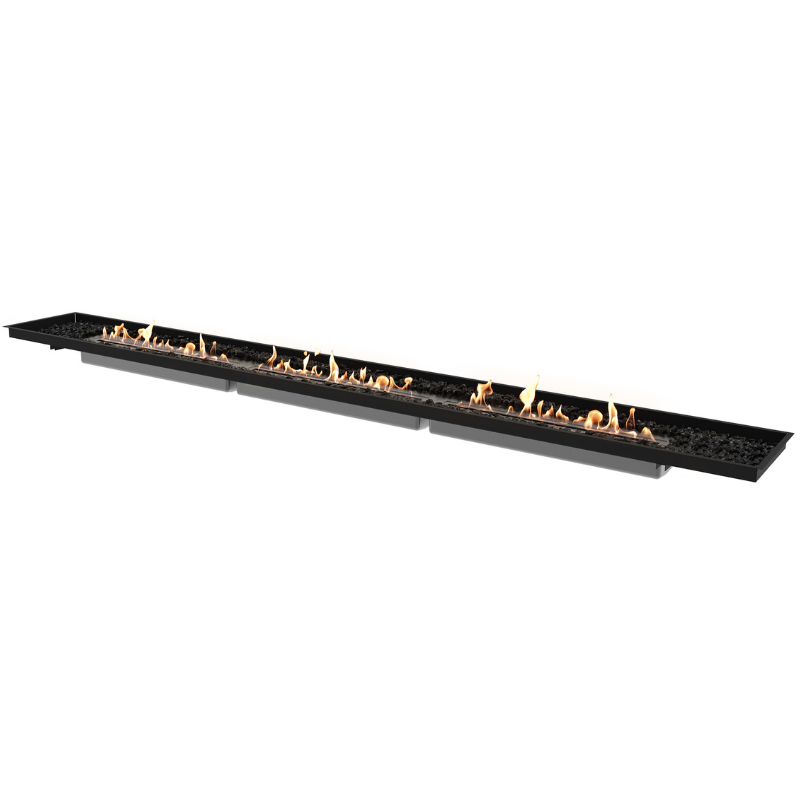

A 3,375 mm ribbon of flame
Three XL900 burners give you a 3.4 metre wide live flame that anchors a hospitality-scale outdoor room without a fireplace, without a flue.
13.2 kW of real heat
13.2 kW (47.5 MJ/h) warms up to 180 m² outdoors. A single Linear 130 heats a whole pool deck.
Indoor or outdoor rated
With the Indoor Safety Tray, the Linear 130 works inside a large hotel lobby or restaurant space, not just outside.
No trades to book
No gas, no flue, no electrical work. A landscaper installs it in an afternoon; no gas licence, no council forms.
8 to 13 hours on a single fill
The 26.9 L tank runs a full evening at full heat, or two long evenings on a lower flame, around 2.1 to 3.4 L an hour on full flame.
Why you should consider an EcoSmart Fire fire pit kit
Every EcoSmart burner is certified to UL 1370 and EN 16647 BSI, with ACCC Safety Mandate compliance built in, and the Linear 130 burns clean e-NRG bioethanol with no combustion by-products beyond CO2 and water vapour, no smoke, no soot to manage; fit the Indoor Safety Tray and the same kit is rated for indoor use too. Buy yours through My Acre and we'll beat any genuine like-for-like price you find elsewhere. Delivery is free Australia wide. If a warranty question ever comes up, you're calling us directly, not an overseas call centre.
Talk it through before you buy
Call the team before you commit to a large-format install; we'll help you check the aperture, sizing and accessories.
Call todayLinear 130 specifications
| Burner | XL900 x 3, Grade 304 stainless steel |
|---|---|
| Fuel | e-NRG bioethanol, 26.9 L capacity (sold separately) |
| Output | 13.2 kW (47.5 MJ/h) |
| Heats | Up to 180 m² outdoors |
| Burn time | 8 to 13 hours per fill |
| Fuel use | About 2.1 to 3.4 L per hour at full flame |
| Running cost | About $12.60 to $22.40 per hour at full flame |
| Burner length | 3 x XL900 |

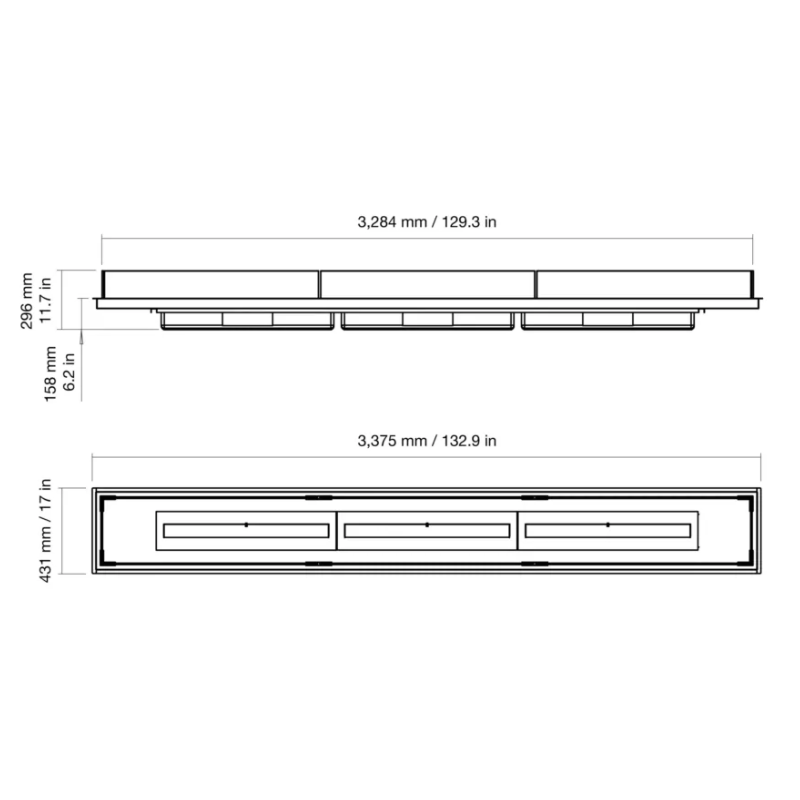

| Housing dimensions | About 3,375 mm x 431 mm x 158 mm H |
| Cutout size | Per the installation manual |
| Weight | About 79.8 kg (kit only) |
| Use | Indoor or outdoor (indoor requires Safety Tray) |
| Certification | UL 1370, EN 16647 BSI, ACCC Safety Mandate |
| Warranty | 2 years, managed by My Acre |
What's included
The Linear 130 is a drop-in burner kit for a surround you or your landscaper build; the concrete or masonry surround itself isn't part of the box. Every kit arrives with:
- XL900 stainless steel linear bioethanol burner
- Insulated stainless steel housing
- Black Glass Charcoal decorative media
- 5 L Jerry Can with safety spout
- Bottle Adaptor
- Lighting Rod
- Fire Lighter
The L130 Fire Screen is an optional accessory, sold separately.
Fitting the Linear 130 in
The housing measures about 3,375 mm x 431 mm overall; the cutout itself follows the installation manual, so confirm the aperture with us before you set out. At around 79.8 kg, plan on three people or a small crane to set it in place. There's no gas, plumbing or electrical work involved. Outdoors, leave 1,000 mm clear of combustibles above the burner. Indoors, fit the Indoor Safety Tray in a room of at least 330 m³ with ventilation.
Frequently asked questions
Is the Linear 130 a complete fire pit?
No. It is a drop-in burner kit for a surround that you or your landscaper build. You get the XL900 burner, insulated housing, media and lighting tools.
What surround materials can I use?
Any non-combustible material: cast concrete, masonry, tile-clad steel or corten. Leave a aperture per the installation manual with 1,000 mm clear above of combustibles.
How long does one fill last?
The XL900 holds 26.9 L and runs 8 to 13 hours per fill at about 2.1 to 3.4 L per hour on full flame. A lower flame stretches it further.
Can I install it indoors?
Yes, with the Indoor Safety Tray fitted, in a room of at least 330 m³ with ventilation.
Does it need gas or a flue?
No. Self-contained bioethanol. Fill, light, enjoy, with no combustion by-products beyond the CO2 and water vapour of a clean ethanol burn.

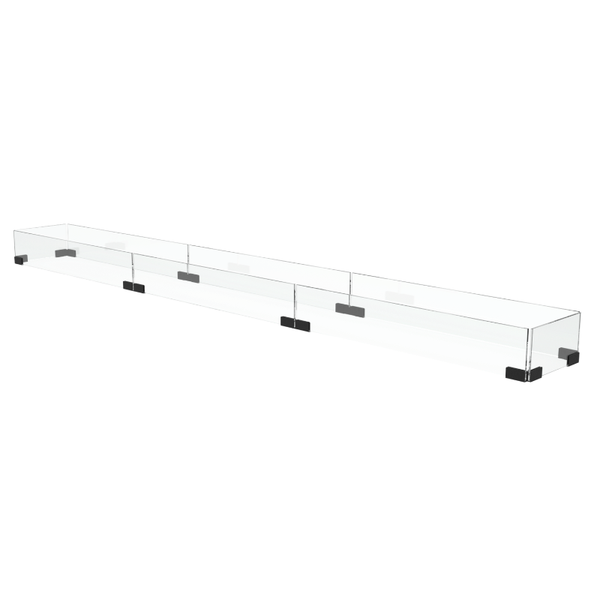

Which fire screen fits the Linear 130?
The L130 Fire Screen. It drops over the burner opening under its own weight, no fixings.
Compare with similar
EcoSmart Linear 130 Fire Pit Kit
The largest bioethanol drop-in kit EcoSmart makes: three XL900 burners, a 3,375 mm housing and 13.2 kW, built for hospitality-scale outdoor rooms.
Best for resort, restaurant or luxury home installs where smaller kits look lost
From $12,895
EcoSmart Linear 90 Fire Pit Kit
Steps down to two XL900 burners, 18 L fuel, 8.8 kW output, in a 2,287 mm housing. Two-thirds the heat and burner length.
Best for large-format installs where the full 3,375 mm Linear 130 is more length than the space needs
From $8,595
EcoSmart Linear 65 Fire Pit Kit
One XL900 burner, 9.1 L, 4.4 kW. A third the heat, a third of the price.
Best for residential-scale installs where the Linear 130 would dominate the room
From $4,295
